Запчасти Case 1021G (39.100.010) - ARTICULATION JOINT INSTALLATION (39) - FRAMES AND BALLASTING

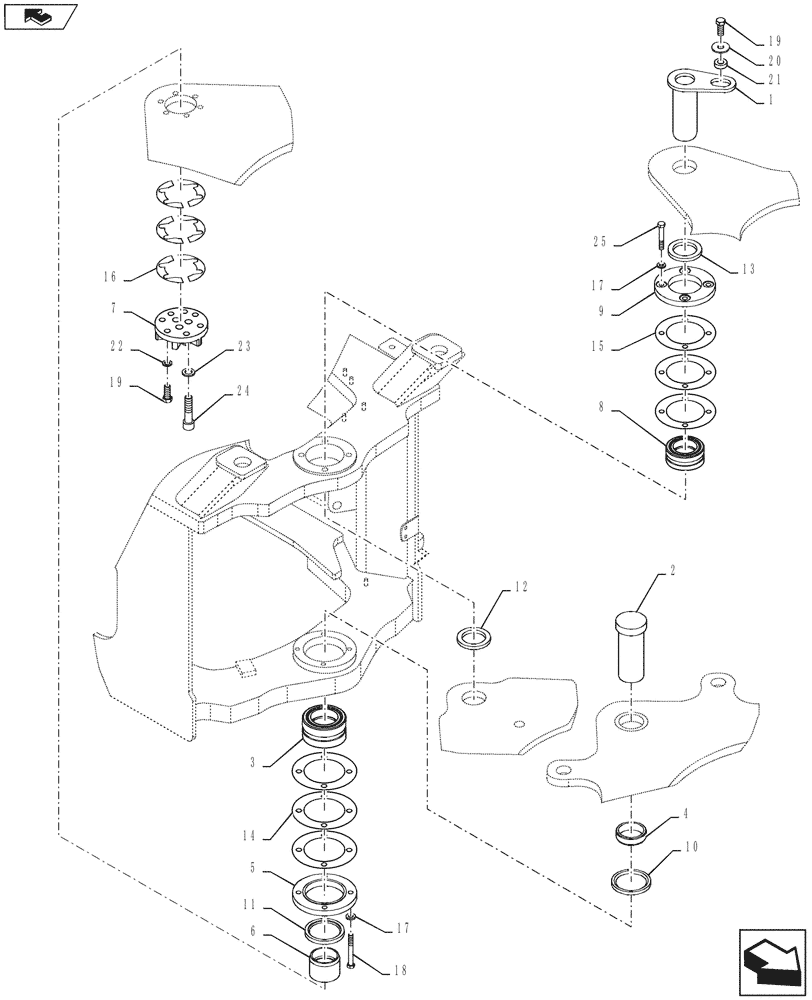

Схема запчастей Case 1021G - (39.100.010) - ARTICULATION JOINT INSTALLATION (39) - FRAMES AND BALLASTING
14
22
18
home
4
5
11
24
23
12
1
19
7
15
16
25
2
3
21
17
6
10
13
9
8
17
19
20

Артикул

Название

Примечание

Количество

1

87354951

PIN,85.71mm OD x 244.7mm L

1шт.

2

84347560

PIN,89.98mm OD x 243.8mm L

1шт.

3

L127971

TAPERED BEARING,89.99mm ID x 154.99mm OD x 88mm W

1шт.

4

84245318

SPACER,90.05mm ID x 107.92mm OD x 31mm L

1шт.

5

87355320

CAP

1шт.

6

84245434

SPACER,90.04mm ID x 107.92mm OD x 78.35mm L

1шт.

7

84245458

PLATE

1шт.

8

L127970

TAPERED BEARING,85.72mm ID x 136.53mm OD x 60.33mm W

1шт.

9

87354952

RETAINER

1шт.

10

L127991

SEAL,107.95mm ID x 139.85mm OD x 12.7mm Thk

1шт.

11

L127990

SEAL,107.95mm ID x 189.85mm OD x 14.27mm Thk

1шт.

12

L127988

SEAL,85.73mm ID x 119.2mm OD x 12.7mm Thk

1шт.

13

L127989

SEAL,85.73mm ID x 120.8mm OD x 12.7mm Thk

1шт.

14

L128233

SHIM,156.4mm ID x 228mm OD x 0.5mm Thk

1шт.

14

L128234

SHIM

0.250mm

1шт.

14

L128235

SHIM

0.100mm

1шт.

15

L128236

SHIM

0.500mm

1шт.

15

L128237

SHIM

0.250mm

1шт.

15

L128240

SHIM,138.5mm ID x 218mm OD x 0.1mm Thk

1шт.

16

87354946

SHIM

0.100mm

1шт.

16

87355440

SHIM

0.250mm

1шт.

16

87355438

SHIM

0.500mm

1шт.

17

896-16016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

8шт.

18

827-16130

BOLT,Hex, M16 x 2 x 130mm, Cl 10.9

4шт.

19

627-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd

7шт.

20

87355604

WASHER

1шт.

21

L127846

SPACER,22.2mm ID x 44.45mm OD x 14.3mm L

1шт.

22

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

6шт.

23

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

3шт.

24

84346908

SCREW

3шт.

25

827-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 10.9

4шт.

Выбрано товаров: 31
