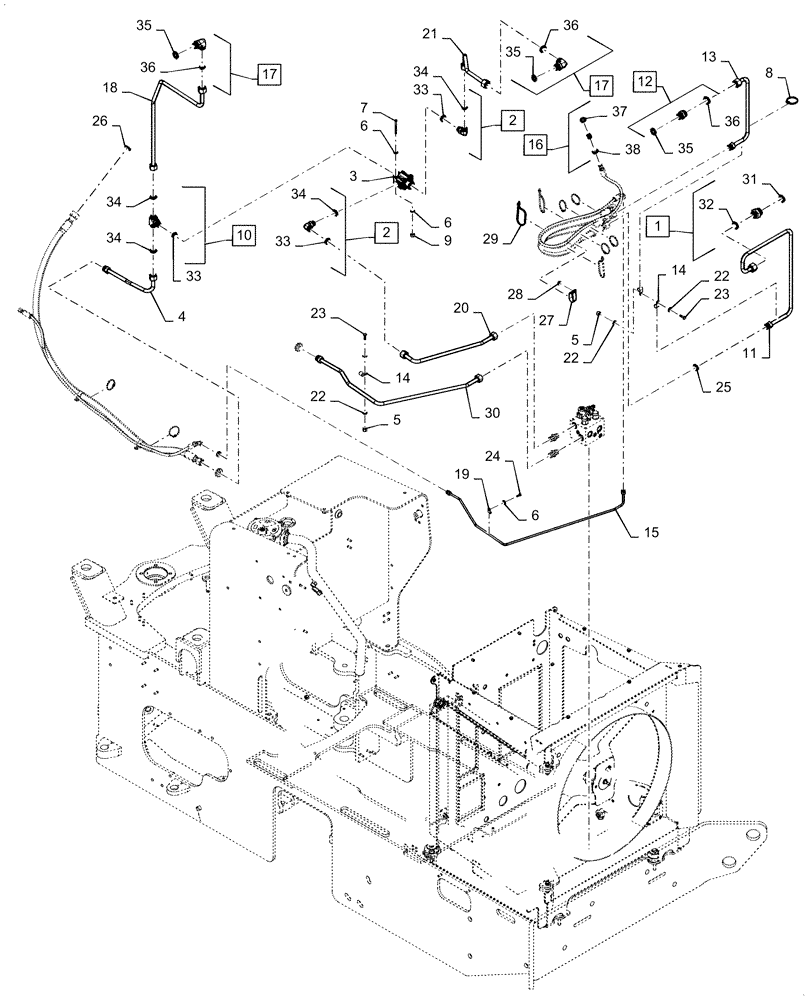

Запчасти Case 1021G (35.820.010[01]) - VAR - 482585 - FAN REVERSING VALVE INSTALLATION (35) - HYDRAULIC SYSTEMS

1

87530372

Incl 31- 32

CONNECTING LINK

1шт.

2

86579697

ELBOW,90 Degree, 1-3/16"-12 ORFS x M27 x 2.0 ORB

Incl 33- 34

2шт.

3

87326981

BY-PASS VALVE

Thermal Bypass

1шт.

4

84576139

RIGID TUBE

Cooling Box Tank

1шт.

5

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

7

827-8090

BOLT,Hex, M8 x 1.25 x 90mm, Cl 10.9

2шт.

8

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

10

86579712

TEE

Incl 33- 34

1шт.

11

84576127

RIGID TUBE

Fan Motor

1шт.

12

86580179

HYD CONNECTOR,1-7/16" - 12 ORFS x M33 x 2 ORB

Incl 35- 36

1шт.

13

84576129

RIGID TUBE

Fan Motor

1шт.

14

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

1шт.

15

84373128

HYD TUBE

Drain

1шт.

16

86580177

HYD CONNECTOR,11/16"-16 ORFS x M12 x 1.5 ORB

Incl 37-38

1шт.

17

86580180

90 ELBOW,90 Degree, 1-7/16"-12 ORFS x M33 x 2.0 ORB

Incl 35 -36

2шт.

18

84498371

TUBE

Cooluer Out

1шт.

19

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

20

84373149

HYD TUBE

Fan Valve to Tank

1шт.

21

84373157

HYD TUBE

Cooler In

1шт.

22

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

23

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

24

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

25

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

26

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

27

L111928

CLAMP

Double

1шт.

28

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

1шт.

29

L18331

CABLE TIE,375.9mm L, Nylon, Black

3шт.

30

84576125

RIGID TUBE

Valve In

1шт.

31

86598105

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

2шт.

32

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

33

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

4шт.

34

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

6шт.

35

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

6шт.

36

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

6шт.

37

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

2шт.

38

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.
