Запчасти Case 1021G (35.733.010[04]) - VAR - 424235 - AXLE COOLER LINE INSTALLATION, HD AXLE (35) - HYDRAULIC SYSTEMS

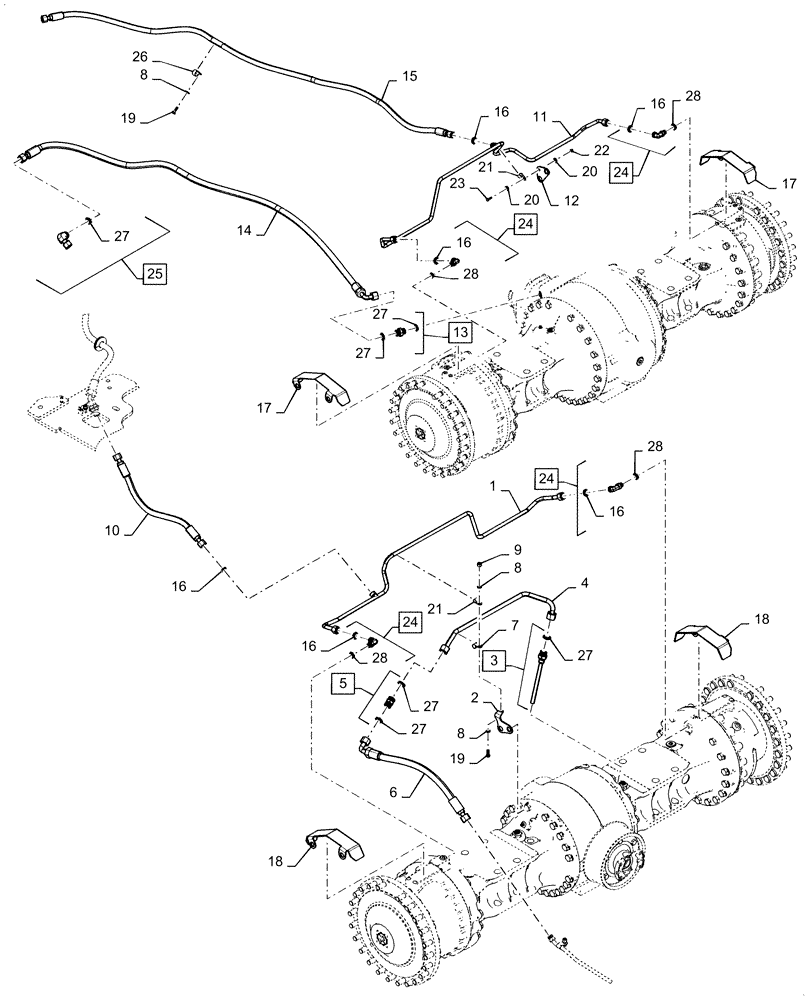

Схема запчастей Case 1021G - (35.733.010[04]) - VAR - 424235 - AXLE COOLER LINE INSTALLATION, HD AXLE (35) - HYDRAULIC SYSTEMS
9
28
12
3
1
24
14
13
28
27
24
20
18
28
2
26
16
21
16
17
5
16
27
24
17
24
16
6
8
27
15
7
11
10
19
19
27
27
16
23
27
20
8
4
18
25
21
28
8
22
16

Артикул

Название

Примечание

Количество

1

84489948

TUBE

Rear Axle Return

1шт.

2

47359732

BRACKET

Rear Axle Tube Support

1шт.

3

84419537

HYD TUBE

Rear Axle Suction, Incl 27

1шт.

4

84477201

TUBE

Suction, Rear Axle

1шт.

5

84385136

CHECK VALVE

Incl 27

1шт.

6

84489946

HOSE ASSY.,19.05mm ID x 673.4mm L, SAE 100R1

Suction, Rear Axle

1шт.

7

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

1шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

10

84489947

HOSE ASSY.,15.88mm ID x 640mm L, SAE 100R1

Return, Rear Axle

1шт.

11

84576119

TUBE

Return, Front Axle

1шт.

12

47488378

BRACKET

Front Axle Tube Support

1шт.

13

87526208

CHECK VALVE

Incl 27

1шт.

14

84489957

HOSE ASSY.,19.05mm ID x 2345mm L, SAE 100R1

Suction, Front Axle

1шт.

15

84483052

HOSE ASSY.,15.88mm ID x 2489mm L, SAE 100R1

Return, Front Axle

1шт.

16

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

10шт.

17

84391508

BRACKET, SUPPORTING

Outer Axle Tube, Front

2шт.

18

84362173

BRACKET, SUPPORTING

Outer Alxe Tube, Rear

2шт.

19

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

20

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

21

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

2шт.

22

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

23

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

24

86579693

ELBOW,90 Degree, 1"-14 ORFS x M18 x 1.5 ORB

Incl 16, 28

4шт.

25

84989412

ELBOW,90 Degree, 1-3/16-12 ORFS x 1-3/16"-12 Fem Sw

Incl 27

1шт.

26

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

27

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

10шт.

28

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

8шт.

Выбрано товаров: 28
