Запчасти Case 1021G (35.359.030[01]) - VAR - 734055 - CONTROL VALVE ASSY - 4 FUNCTION, 5 SPOOL (35) - HYDRAULIC SYSTEMS

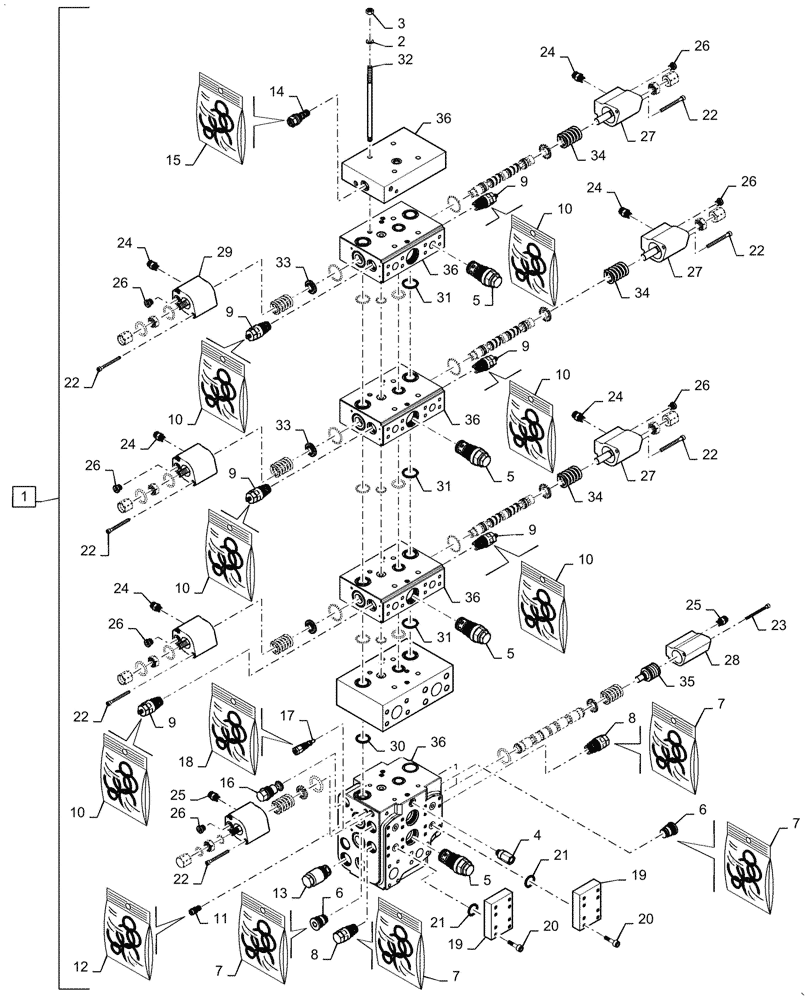

Схема запчастей Case 1021G - (35.359.030[01]) - VAR - 734055 - CONTROL VALVE ASSY - 4 FUNCTION, 5 SPOOL (35) - HYDRAULIC SYSTEMS
27
21
12
2
23
6
8
35
7
36
25
5
22
36
3
15
10
10
36
25
16
20
34
31
5
24
22
17
27
24
28
7
10
5
18
9
22
33
34
22
4
10
20
26
7
26
19
26
30
27
33
19
9
24
9
9
34
10
26
22
8
24
36
22
11
27
32
14
26
7
36
31
1
6
13
26
21
31
24
29
22
26
24
9
5
9
10

Артикул

Название

Примечание

Количество

1

47861491

CONTROL VALVE

Assembly, Control, 4 Function, 5 Spool, Incl 1 - 36

1шт.

2

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

3

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

4

8602899

HYDRAULIC VALVE

Pilot Pressure Reducing

1шт.

5

84483015

VALVE

Compensator

4шт.

6

47729047

SCREW

Hydraulic Plug

2шт.

7

47728011

SEAL KIT

Hydraulic Plug / Anti-Cavitation Valve (Use with Valve 87613468)

4шт.

7

48043557

SEAL KIT

Anti-Cavitation (Use with Valve 48043556)

2шт.

8

87613468

HYDRAULIC VALVE

Anti-Cavitation

2шт.

8

48043556

VALVE

Anti-Cavitation

2шт.

9

84150116

VALVE

Anti - Cavitation / Relief

4шт.

10

84483013

SEAL KIT

Anti - Cavitation / Relief

4шт.

11

87613469

HYDRAULIC VALVE

Flow Limiting

1шт.

12

47728020

SEAL KIT

Flow Limiting

1шт.

13

84483012

VALVE

Anti - Cavitation

1шт.

14

8602913

HYDRAULIC VALVE

Flow Limiting

1шт.

15

47728959

SEAL KIT

Flow Limiting

1шт.

16

84483009

CHECK VALVE

2шт.

17

8602925

VALVE PRESSURE RELIE

1шт.

18

87692469

SEAL KIT

Pressure Relief

1шт.

19

84483010

PLATE

Spool Combining

2шт.

20

864-10040

HEX SOC SCREW,M10 x 40mm, Cl 8.8

16шт.

21

238-6214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

10шт.

22

87615735

SCREW

M6 x 65 - 8.8

12шт.

23

47727996

SCREW

4шт.

24

84483024

FITTING

Orifice Check Valve

2шт.

25

84483023

FITTING

Orifice Check Valve

4шт.

26

87311766

PLUG

M12 x 1.5

6шт.

27

84483021

COVER

Spool

5шт.

28

84483019

COVER

Float

2шт.

29

47582749

COVER

Spool Rotation Stop

1шт.

30

84483016

SEAL KIT

Main Valve Body

1шт.

31

87620361

SEAL KIT

Valve Body Sections

2шт.

32

84496724

STUD

M10 x 360 - 10.9

4шт.

33

47728035

RETAINER

Centering Spring

8шт.

34

87364779

COMPRESSION SPRING

8шт.

35

84483022

SPRING

Float

2шт.

36

NSS

NOT SOLD SEPARAT

Block, Incl in 1

5шт.

Выбрано товаров: 38
