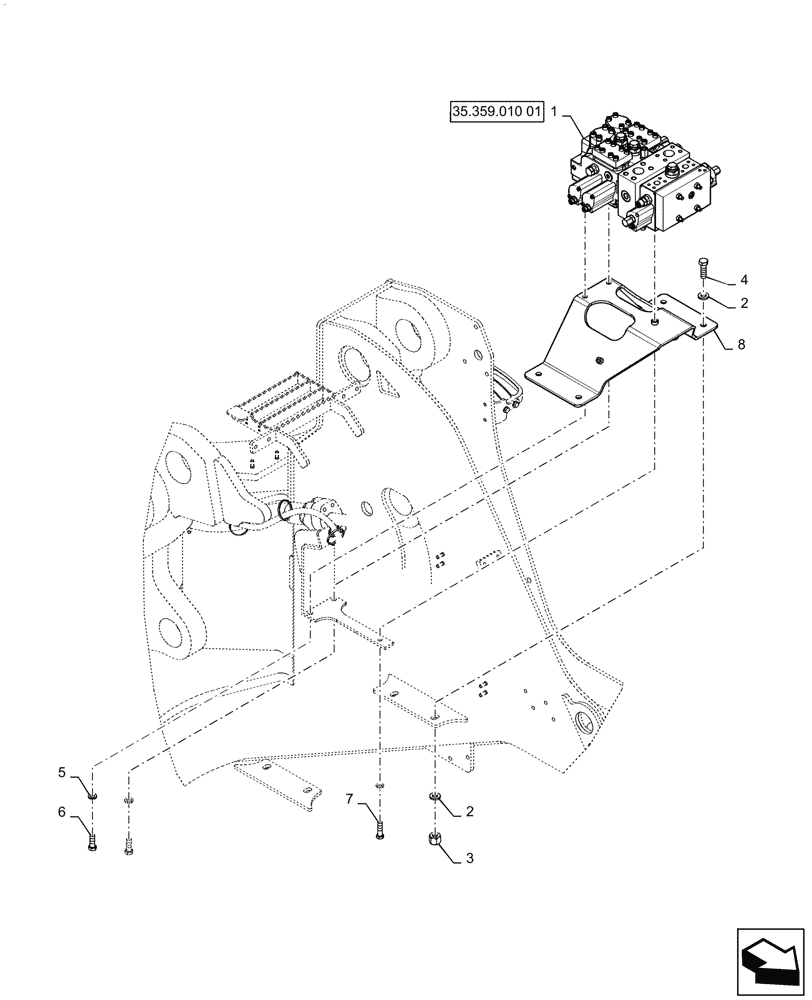

Запчасти Case 1021G (35.357.030[01]) - VAR - 734051, 734052 - CONTROL VALVE, MOUNTING - 2 FUNCTION, 3 SPOOL (35) - HYDRAULIC SYSTEMS

1

47574617

VALVE

2 Function, Z-Bar

1шт.

2

896-16016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

8шт.

3

832-10416

NUT,M16 x 2, Cl 8

4шт.

4

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

5

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

6

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

7

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

1шт.

8

47936774

BRACKET

1шт.
