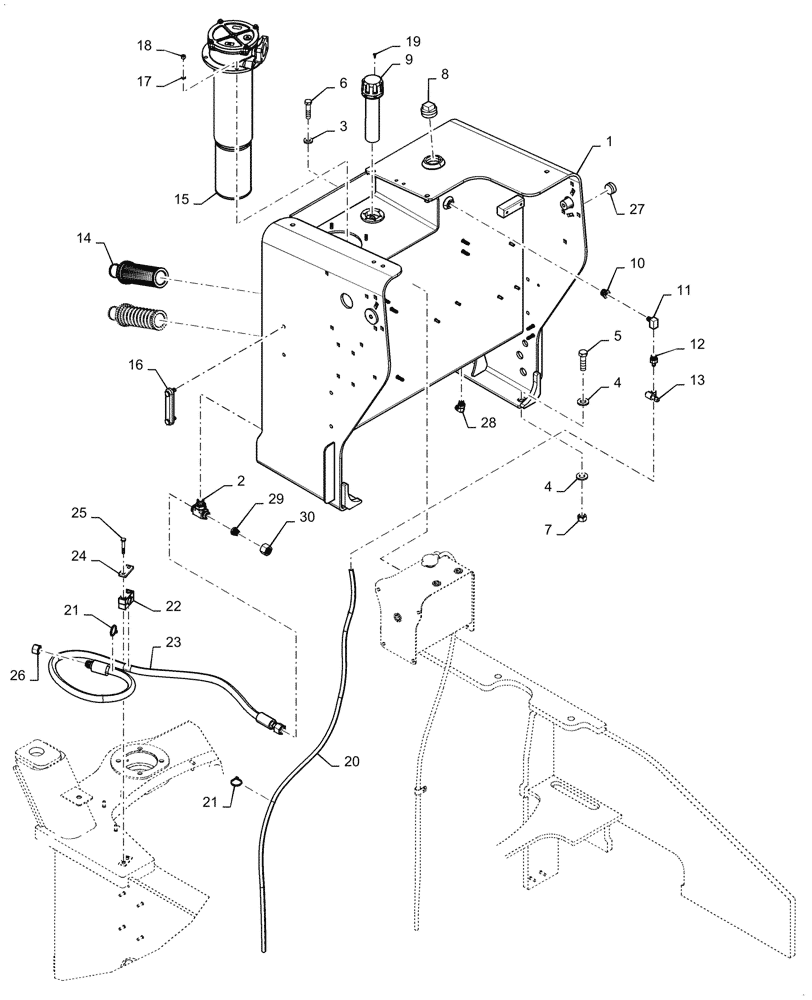

Запчасти Case 1021G (35.300.020) - HYDRAULIC SYSTEM TANK (35) - HYDRAULIC SYSTEMS

1

47709789

TANK

Hydraulic

1шт.

2

84312236

BRANCH TEE

1шт.

3

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

2шт.

4

896-15020

WASHER,22mm ID x 44mm OD x 5mm Thk

4шт.

5

827-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

2шт.

6

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

2шт.

7

832-41320

NUT,M20 x 2.5, Cl 10

2шт.

8

84193281

PLUG

1шт.

9

367149A1

STRAINER ASSY.

Hydraulic Tank

1шт.

10

221-1092

REDUCER,Hex, 3/4" x 3/8" NPT

1шт.

11

86521965

ELBOW,90 Degree, 3/8"-18 Female x 3/8"-18 Male

1шт.

12

8606006

VALVE, CHECK

Hydraulic Tank

1шт.

13

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

1шт.

14

84201770

FILTER STRAINER

2шт.

15

47399178

FILTER ASSY

Return

1шт.

16

86988366

SIGHTGLASS

1шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

18

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

19

840-1512

SCREW,Pan, M5 x 12mm, Gr 4.8

6шт.

20

31-2281

HOSE,9.5 mm ID x 1828.80 mm

Breather

1шт.

21

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

22

372453A1

BLOCK

1шт.

23

47494616

HYDRAULIC HOSE

Drain, Tank to Valve

1шт.

24

367658A1

PLATE

1шт.

25

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

2шт.

26

218-335

CAP,37 Degree, 1 1/16"-12

1шт.

27

217-445

PLUG,Hex Soc, 1-1/4" - 11-1/2 NPTF

1шт.

28

700-345

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

29

201-142

REDUCER,11/16"-16 Male x 1 3/16"-16 Fem, ORFS

1шт.

30

703-904

TUBE NUT,1-3/16" - 12

1шт.
