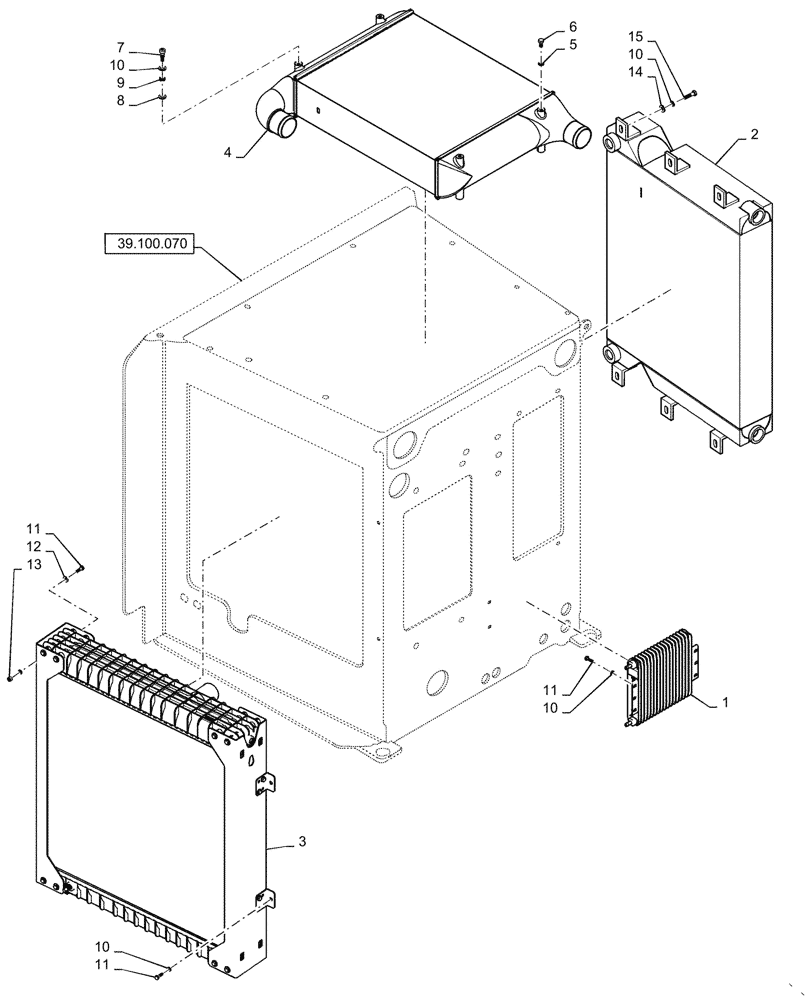

Запчасти Case 1021G (35.300.010) - VAR - 782454 - TRANSMISSION HYDRAULIC OIL AND FUEL COOLER (35) - HYDRAULIC SYSTEMS

1

84406480

FUEL COOLER

1шт.

2

47558785

COOLER

Transmission / Hydraulic Oil

1шт.

3

84399996

RADIATOR

1шт.

4

84316357

COOLER ASSY.

Charge Air

1шт.

5

892-11010

LOCK WASHER,M10

5шт.

6

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

7

84370847

HEX SOC SCREW,M10 x 20mm, Cl 12.9

2шт.

8

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

9

386040R1

SPRING

Poppet Return

2шт.

10

892-11008

LOCK WASHER,8mm ID

8шт.

11

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

8шт.

12

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

13

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

14

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

3шт.

15

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

3шт.
