Запчасти Case 1021G (35.204.020[01]) - VAR - 734053, 734054 - SOLENOID VALVE, ASSY - EH CONTROL, 3 FUNCTION (35) - HYDRAULIC SYSTEMS

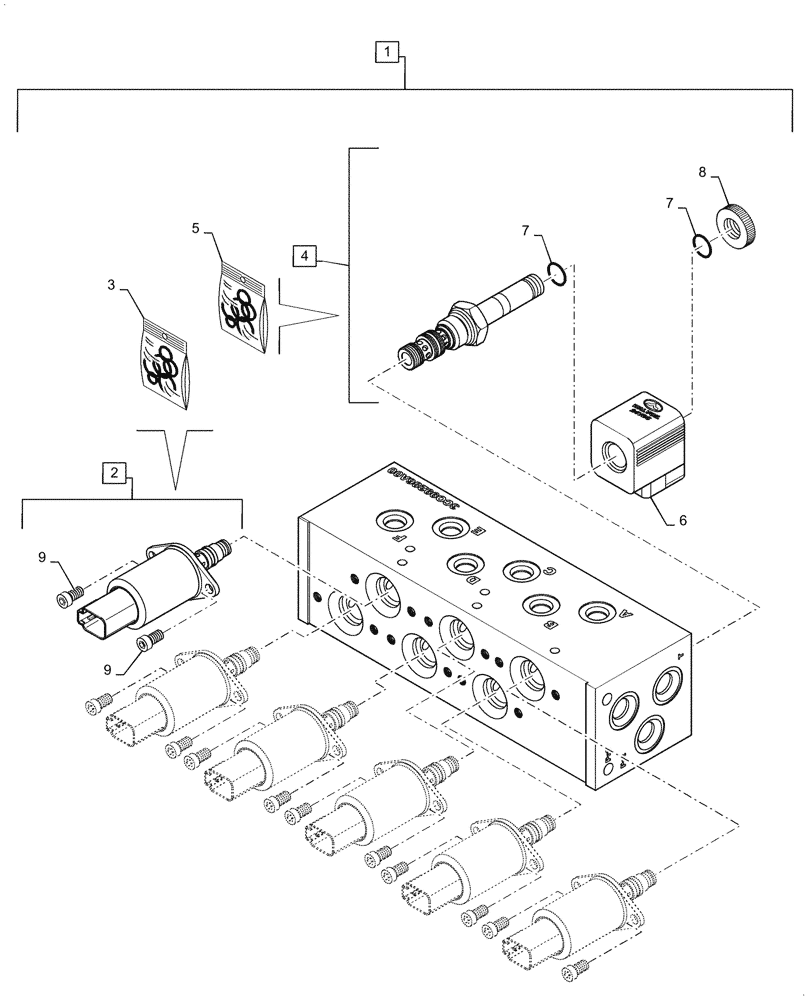

![Схема запчастей Case 1021G - (35.204.020[01]) - VAR - 734053, 734054 - SOLENOID VALVE, ASSY - EH CONTROL, 3 FUNCTION (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/casece/5449570.png)
9
4
3
7
7
9
1
2
5
6
8
№
Артикул
Название
Примечание
Количество
1
47646722
VALVE
Assy, Incl 2 - 9
1шт.
2
47902130
VALVE
Proportional Solenoid Valve, Incl 9
6шт.
3
47902131
SEAL KIT
Proportional Solenoid Valve
1шт.
4
47902132
CONTROL VALVE
Direction Control Valve
1шт.
5
47902133
SEAL KIT
Direction Control Valve
1шт.
6
47902134
COIL
24V DC, Direction Control Valve
1шт.
7
47902135
O-RING
Direction Control Valve Coil
1шт.
8
47902136
NUT
Direction Control Valve Coil
1шт.
9
NSS
NOT SOLD SEPARAT
Incl in 2
12шт.
Выбрано товаров: 9
