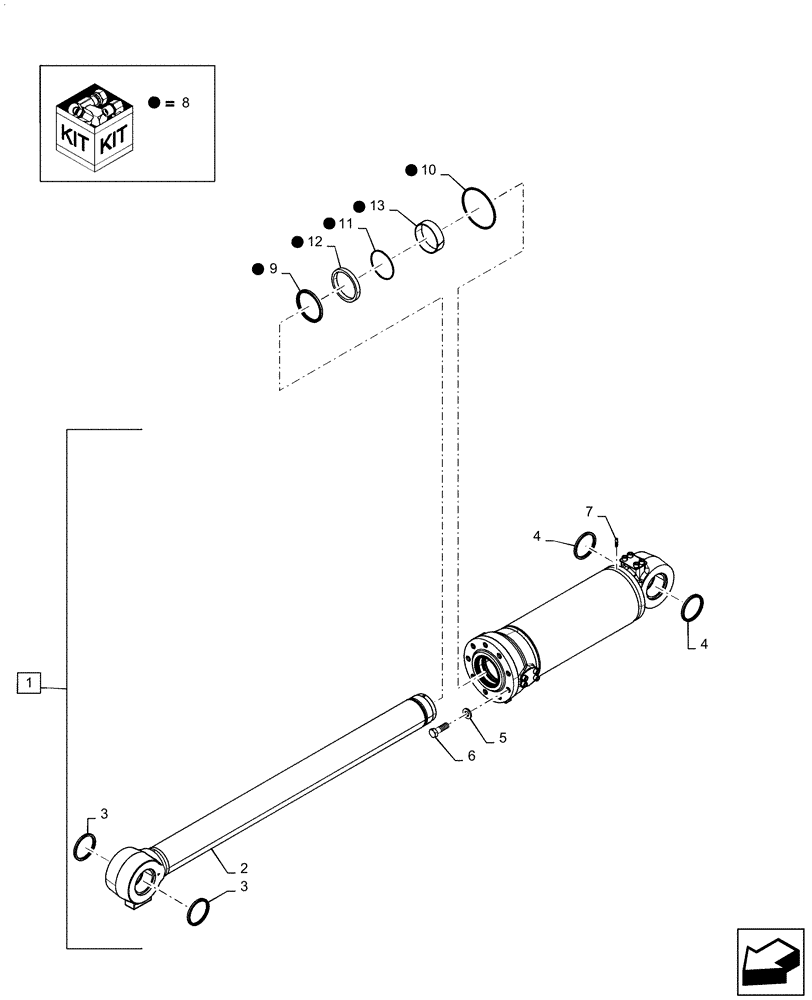

Запчасти Case 1021G (35.100.020[03]) - TILT CYLINDER Z-BAR (35) - HYDRAULIC SYSTEMS

1

84282975

HYDRAULIC CYLINDER,Double Acting, 203.2mm Rod, 581.9mm Stroke

Incl 2 - 7

1шт.

2

84344083

PISTON ROD,127mm OD x 1207.46mm L

127.0mm Dia

1шт.

3

84291138

BUSHING,101.92mm ID x 117.58mm OD x 112mm L

1шт.

4

S108245

WIPER SEAL

101.6mm

4шт.

5

87613298

WASHER,0.94" ID x 1.75" OD x 0.22" Thk

101.6mm

9шт.

6

87690481

BOLT,Hex, M22 x 70mm, Cl 10.9

9шт.

7

G106602

LOCK PIN

1шт.

8

84282953

SERVICE KIT

Incl 9 - 13

1шт.

9

NSS

NOT SOLD SEPARAT

Rod U-Cup Seal

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring, 5 x 5.25 IN

1шт.

11

NSS

NOT SOLD SEPARAT

Backup Ring

1шт.

12

NSS

NOT SOLD SEPARAT

Rod Buffer Seal

1шт.

13

NSS

NOT SOLD SEPARAT

Rod Backup Ring

1шт.
