(35.100.020[02]) - TILT CYLINDER XR/LR

Запчасти Case 1021G (35.100.020[02]) - TILT CYLINDER XR/LR (35) - HYDRAULIC SYSTEMS

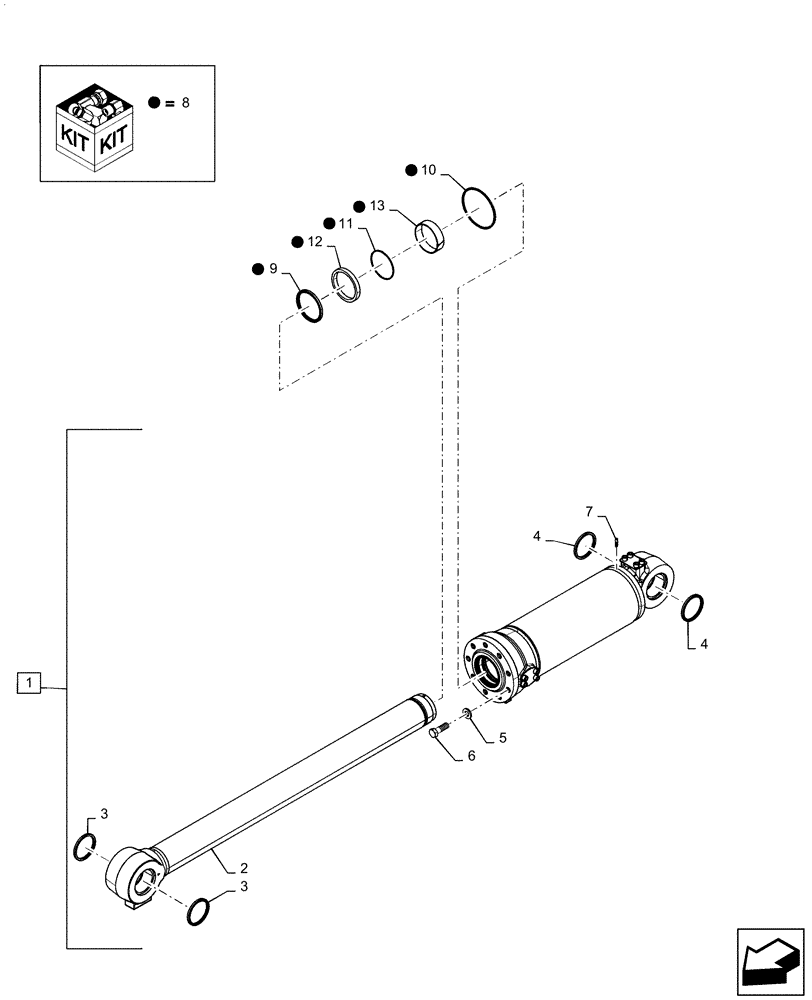

Схема запчастей Case 1021G - (35.100.020[02]) - TILT CYLINDER XR/LR (35) - HYDRAULIC SYSTEMS
13
3
1
8
8
4
6
8
8
8
3
4
9
12
10
7
8
8
5
2
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84344677

HYDRAULIC CYLINDER,Double Acting, 127mm Rod, 581.9mm Stroke

Incl 2 - 7

1шт.

2

84346246

PISTON ROD

127.0mm Dia

1шт.

3

84291138

BUSHING,101.92mm ID x 117.58mm OD x 112mm L

1шт.

4

S108245

WIPER SEAL

101.6mm

4шт.

5

87613298

WASHER,0.94" ID x 1.75" OD x 0.22" Thk

101.6mm

9шт.

6

87690481

BOLT,Hex, M22 x 70mm, Cl 10.9

9шт.

7

G106602

LOCK PIN

1шт.

8

84282953

SERVICE KIT

Incl 9 - 13

1шт.

9

NSS

NOT SOLD SEPARAT

Rod U-Cup Seal

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring, .125 x 7.750 IN

1шт.

11

NSS

NOT SOLD SEPARAT

Backup Ring

1шт.

12

NSS

NOT SOLD SEPARAT

Rod Buffer Seal

1шт.

13

NSS

NOT SOLD SEPARAT

Rod Backup Ring

1шт.
