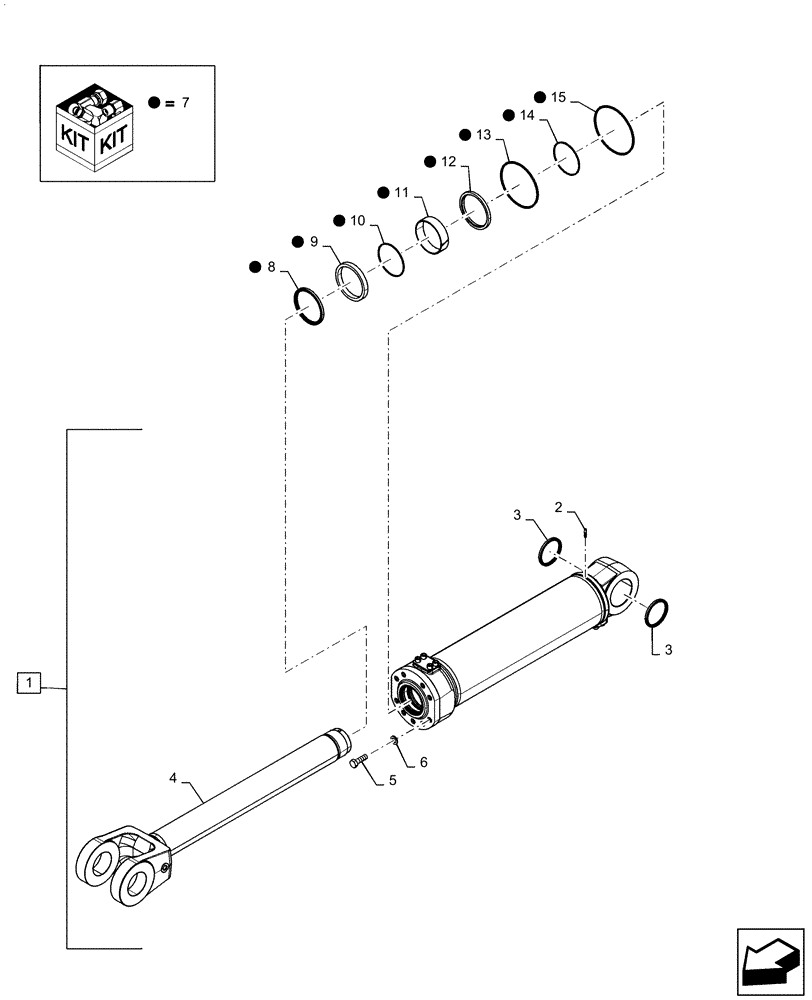

Запчасти Case 1021G (35.100.020[01]) - LIFT CYLINDER XR/LR (35) - HYDRAULIC SYSTEMS

1

84281864

HYDRAULIC CYLINDER,Double Acting, 114.3mm Rod, 780.6mm Stroke

Incl 2 - 6

1шт.

2

G106602

LOCK PIN

Piston

1шт.

3

S108245

WIPER SEAL

101.6mm

2шт.

4

84281846

PISTON ROD

114.3mm Diameter

1шт.

5

9843495

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9

9шт.

6

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

9шт.

7

47773169

KIT

Seal Kit, Incl 8-15

1шт.

8

NSS

NOT SOLD SEPARAT

Rod U-Cup Seal

1шт.

9

NSS

NOT SOLD SEPARAT

Rod Backup Ring

1шт.

10

NSS

NOT SOLD SEPARAT

Backup Ring

1шт.

11

NSS

NOT SOLD SEPARAT

Piston Wear Ring

1шт.

12

NSS

NOT SOLD SEPARAT

Rod Cylinder Wear Ring

1шт.

13

NSS

NOT SOLD SEPARAT

O-Ring .188 x 6.250 IN

1шт.

14

NSS

NOT SOLD SEPARAT

Backup Ring

2шт.

15

NSS

NOT SOLD SEPARAT

O-Ring 4.5 x 4.75 IN

1шт.
