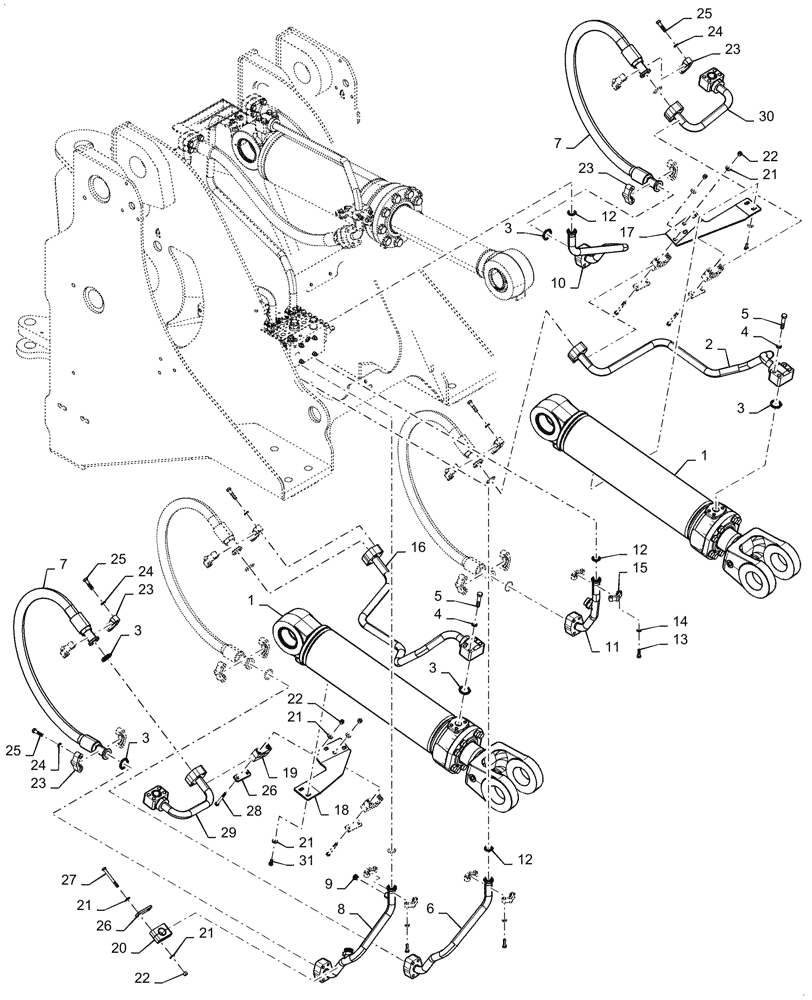

Запчасти Case 1021G (35.100.010[02]) - LIFT CYLINDER LINES AND FITTINGS (35) - HYDRAULIC SYSTEMS

1

84281863

HYDRAULIC CYLINDER,Double Acting, 114.3mm Rod, 780.6mm Stroke

Lift Cylinder

2шт.

2

84372370

TUBE

Lift Rod, LH

1шт.

3

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

6шт.

4

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

16шт.

5

827-14070

BOLT,Hex, M14 x 2 x 70mm, Cl 10.9

16шт.

6

84426445

TUBE

Lift Rod, RH

1шт.

7

84271140

HYDRAULIC HOSE

Lift Cylinder

7шт.

8

84534903

TUBE

Lift Base, RH

1шт.

9

220064A1

PLUG,M14 x 1.5, ORB

16шт.

10

84426447

TUBE

Lift Base, LH

1шт.

11

84534900

TUBE

Lift Rod, LH

1шт.

12

238-6214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

6шт.

13

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

24шт.

14

892-11010

LOCK WASHER,M10

24шт.

15

86980731

CLAMP

12шт.

16

47359739

TUBE

Lift Rod, RH

1шт.

17

47950764

BRACKET

Lift Tube Mount, LH

1шт.

18

47950766

BRACKET

Lift tube Mount, RH

1шт.

19

87452747

CLAMP,33.4mm ID

4шт.

20

84240210

CLAMP,16mm ID

4шт.

21

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

28шт.

22

832-10410

NUT,M10 x 1.5, Cl 8

16шт.

23

86980733

CLAMP

16шт.

24

892-11012

LOCK WASHER,M12

48шт.

25

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

48шт.

26

8500858

PLATE

8шт.

27

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

8шт.

28

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

8шт.

29

47359734

TUBE

Lift Base, RH

1шт.

30

84295306

HYD TUBE

Lift Base, LH

1шт.

31

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.
