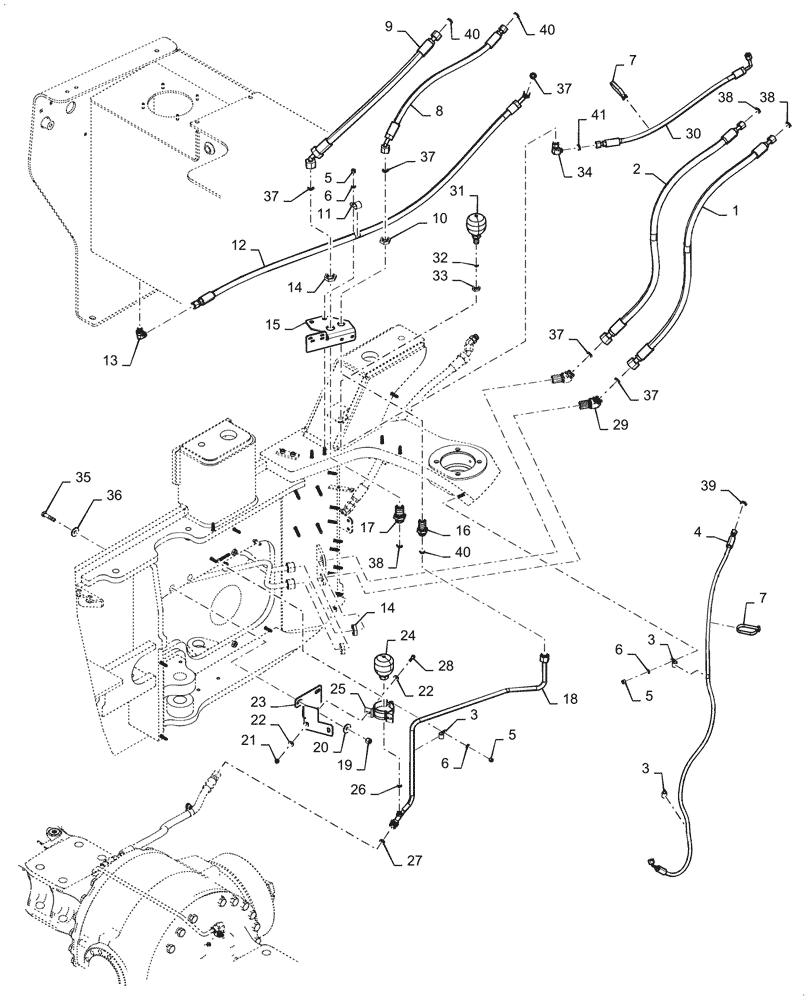

Запчасти Case 1021G (33.202.020[01]) - MAIN HYDRAULIC BRAKE (33) - BRAKES & CONTROLS

1

47671801

HOSE

Brake Accumulator, 1280mm L, Service O-Rings Ref. 37, 38

1шт.

2

47671798

HOSE

Brake Accumulator, 1240mm L, Service O-Rings Ref. 37, 38

1шт.

3

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

3шт.

4

48042459

HOSE

Parking Brake, 1880mm L, Service O-Ring Ref. 39

1шт.

5

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

7

84266050

CABLE TIE,384mm L, Polyamide

1шт.

8

48024067

HOSE

Return to Tank, 712mm L, Service O-Rings Ref. 37, 40

1шт.

9

47671806

HOSE

Rear Brake, 755mm L, Service O-Rings Ref. 38, 40

1шт.

10

701-919

BHD LOCK NUT,1" - 14

1шт.

11

515-24238

CLAMP,15/16", Insul, 7/16" Bolt

1шт.

12

47671805

HOSE

Return to Tank, 1810mm L, Service O-Ring Ref. 37

1шт.

13

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

14

701-1249

BHD LOCK NUT,1-3/16" - 12

3шт.

15

47955229

BRACKET

Bracket, Valve Mount

1шт.

16

701-123

UNION,1" - 14 Male ORFS x 1" - 14 Male ORFS

Service O-Ring, Ref. 40

1шт.

17

701-140

UNION,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS

Service O-Ring, Ref. 38

1шт.

18

47699783

TUBE

Rear Brake Supply, 1224mm L

1шт.

19

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

20

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

21

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

22

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

23

47942607

BRACKET

Bracket, Accumulator Mount

1шт.

24

84393492

ACCUMULATOR

Brake Damping

1шт.

25

84272713

CLAMP,73mm - 79mm

1шт.

26

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

27

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

28

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

29

87302137

ELBOW,45 Degree, 1 3/16"-12, ORFS, Blkhd

2шт.

30

47671804

HOSE

Parking Brake Accumulator, 695mm L, Service O-Rings Ref. 41

1шт.

31

8500209

ACCUMULATOR

Parking Brake

1шт.

32

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

33

701-909

NUT,11/16" - 16

1шт.

34

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

1шт.

35

827-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

2шт.

36

895-25012

WASHER,M12 x 37 x 3

2шт.

37

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

38

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

39

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

40

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

41

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
