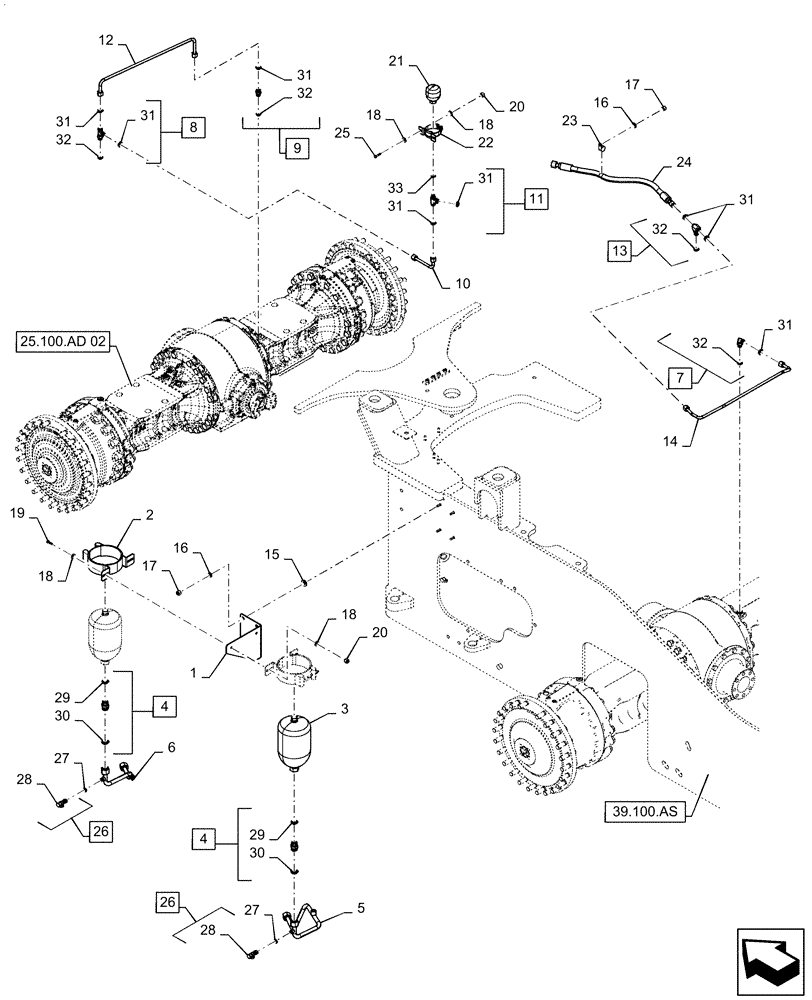

Запчасти Case 1021G (33.110.010[01]) - VAR - 734046, 424775 - BRAKE ACCUMULATOR INSTALLATION, STD AXLE (33) - BRAKES & CONTROLS

1

84305573

MOUNTING PLATE

Accumulator To Chassis

1шт.

2

8501315

CLAMP,167mm - 175mm

Accumulator

2шт.

3

87728740

ACCUMULATOR

Service Brake

2шт.

4

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

Incl 29, 30

2шт.

5

47359724

RIGID TUBE

Rear Accumulator

1шт.

6

47359729

RIGID TUBE

Front Accumulator

1шт.

7

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

Incl 31, 32

1шт.

8

86579702

TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x M18 x 1.5 ORB

Incl 31, 32

1шт.

9

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

Incl 31, 32

1шт.

10

84306523

TUBE

Brake Supply, Front

1шт.

11

84218880

RUN TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 9/16" - 18 ORB

Incl 31, 33

1шт.

12

84306479

TUBE

Front Axle Brake

1шт.

13

86579710

TEE,13/16"-16 ORFS x M18 x 1.5 ORB Br

Incl 31, 32

1шт.

14

84306474

TUBE

Rear Axle Brake

1шт.

15

896-16016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

4шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

5шт.

17

832-10410

NUT,M10 x 1.5, Cl 8

5шт.

18

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

8шт.

19

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

20

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

21

84393492

ACCUMULATOR

Brake Damping

1шт.

22

84272713

CLAMP,73mm - 79mm

Accumulator

1шт.

23

515-23270

CLAMP,1 1/16", Insul, 3/8" Bolt

1шт.

24

84306472

HOSE,15.88mm ID x 770mm L, SAE 100R17

Rear Brake Supply

1шт.

25

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

2шт.

26

190117A1

COUPLING

Incl 28

2шт.

27

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

28

H434163

DUST CAP

Diagnostic Connector Cover

2шт.

29

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

4шт.

30

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

31

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

20шт.

32

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

10шт.

33

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.
