Запчасти Case 1021G (27.102.010) - VAR - 734045, 734046 - DIFFERENTIAL ASSEMBLY, STANDARD/HEAVY DUTY (27) - REAR AXLE SYSTEM

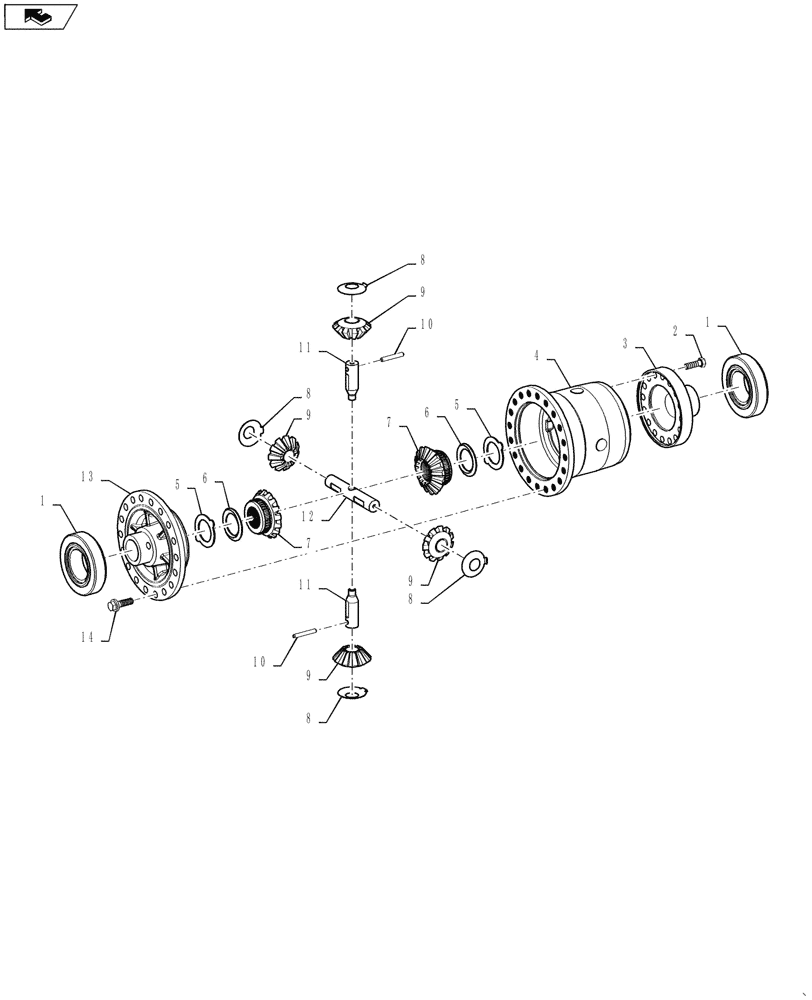

Схема запчастей Case 1021G - (27.102.010) - VAR - 734045, 734046 - DIFFERENTIAL ASSEMBLY, STANDARD/HEAVY DUTY (27) - REAR AXLE SYSTEM
5
10
8
9
2
13
1
8
6
6
11
8
7
9
12
14
7
5
8
1
9
4
10
11
3
home
9

Артикул

Название

Примечание

Количество

1

47963874

TAPERED BEARING

2шт.

2

84354752

HEX SOC SCREW

16шт.

3

47963873

COVER

Housing

1шт.

4

84354791

HOUSING

Differential

1шт.

5

120017A1

THRUST WASHER

Thrust

2шт.

6

120019A1

THRUST WASHER

Thrust

2шт.

7

384508A1

GEAR

Differential Side 16T

2шт.

8

84353924

THRUST WASHER

4шт.

9

120018A1

PINION

Gear Differential

4шт.

10

47963872

SLOTTED PIN

2шт.

11

84353926

DIFFERENTIAL

Axle Pinion

2шт.

12

84353925

DIFFERENTIAL

Axle Pinion

1шт.

13

47963870

COVER

Housing

1шт.

14

184716A1

SCREW

20шт.

Выбрано товаров: 14
