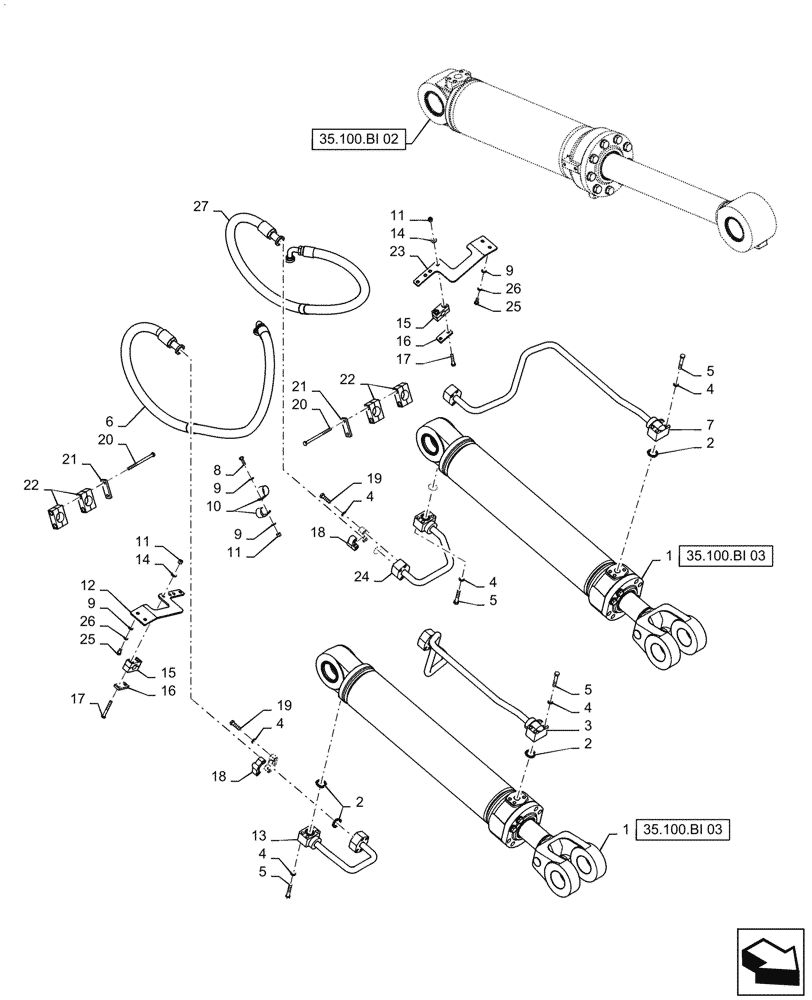

Запчасти Case 921F (35.100.AR[02]) - LIFT CYLINDER INSTALLATION (35) - HYDRAULIC SYSTEMS

1

84251977

HYDRAULIC CYLINDER,Double Acting, 88.9mm Rod, 845.7mm Stroke

Lift

2шт.

2

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

6шт.

3

84382786

HYD TUBE

Lift Cylinder Base Right Hand

1шт.

4

892-11012

LOCK WASHER,M12

6шт.

5

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

16шт.

6

84382789

HOSE ASSY.

Lift Cylinder

1шт.

7

84382767

HYD TUBE

Left Hand Rod

1шт.

8

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

10

515-25381

CLAMP,1 1/2", Insul, 1/2" Bolt

2шт.

11

832-10410

NUT,M10 x 1.5, Cl 8

9шт.

12

84382764

BRACKET

Left Hand Lift Cylinder

1шт.

13

84382766

HYD TUBE

Tube Lift Cylinder Rod Left Hand

1шт.

14

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

15

367489A1

BLOCK

2шт.

16

367658A1

PLATE

Cover

4шт.

17

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

10шт.

18

86980732

CLAMP

2шт.

19

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

8шт.

20

827-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 10.9

4шт.

21

8500858

PLATE

Cover

2шт.

22

87444561

BLOCK

4шт.

23

84382761

BRACKET

Right Hand Cylinder

1шт.

24

84382786

HYD TUBE

Lift Cylinder, Base

1шт.

25

827-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 10.9

4шт.

26

892-11010

LOCK WASHER,M10

4шт.

27

84257974

HOSE ASSY.

1шт.
