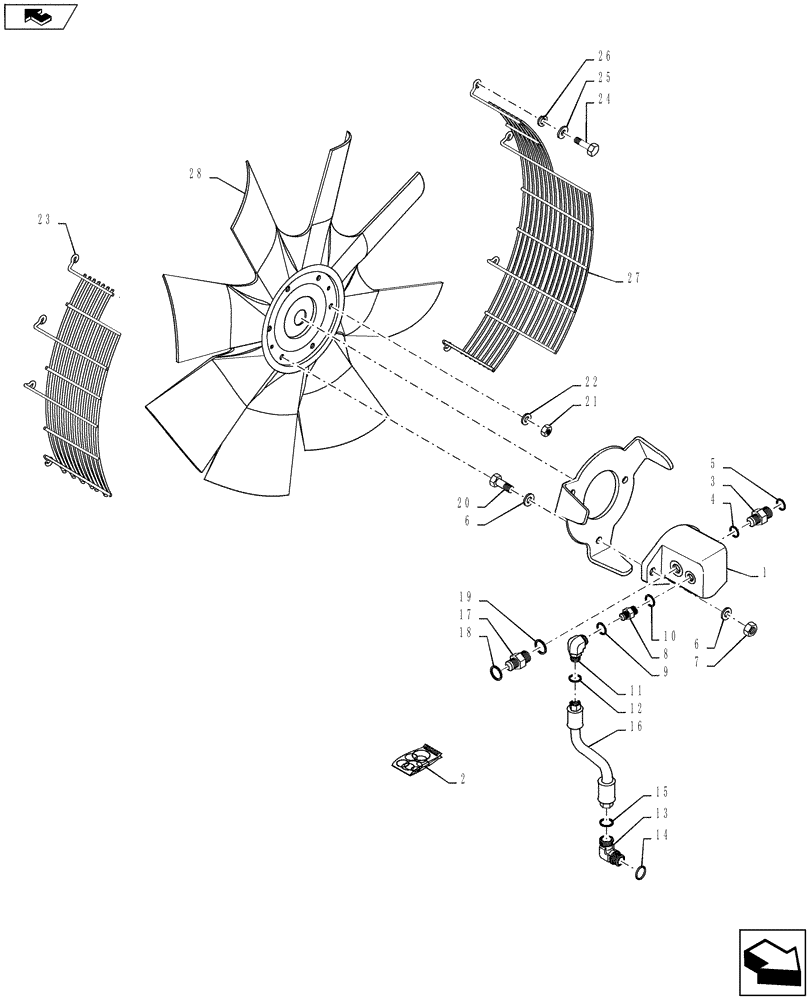

Запчасти Case 921F (35.000.AB) - FAN DRIVE ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

8500105

HYDRAULIC MOTOR,GEAR, 23 CC

Reversible Fan Incl 2, 821F Only

1шт.

1

8500105R

REMAN-HYD MOTOR

821F, 921F BOTH TIER 4

1шт.

1

8500105C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

1

84409419

HYDRAULIC MOTOR

Reversible Fan Incl 2, 921F Only

1шт.

2

86991683

SEAL KIT

Fan Drive 821F Only

1шт.

2

84496769

SEAL KIT

Fan Drive 921F Only

1шт.

3

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

1шт.

4

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

5

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

7

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

8

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

9

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

10

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

11

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

1шт.

12

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

13

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

14

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

15

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

16

8500183

FLEXIBLE HOSE

Drain

1шт.

17

700-107

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M22 x 1.5 Male ORB

1шт.

18

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

19

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

20

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

21

232-2448

NUT,1/2"-20, GC

1шт.

22

496-21053

WASHER,17/32" x 1 1/16" x .134"

1шт.

23

87347864

GUARD

Fan Left Hand, Use 24 - 26 For Installation

1шт.

24

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

8шт.

25

892-11008

LOCK WASHER,8mm ID

8шт.

26

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

27

84603263

GUARD

Fan Right Hand, Use 24 - 26 For Installation

1шт.

28

87700025

FAN,8 Blades, 711.2mm OD

Assembly, Hub and Blades

1шт.
