Запчасти Case 921F (27.100.AS) - REAR AXLE DIFFERENTIAL CARRIER (27) - REAR AXLE SYSTEM

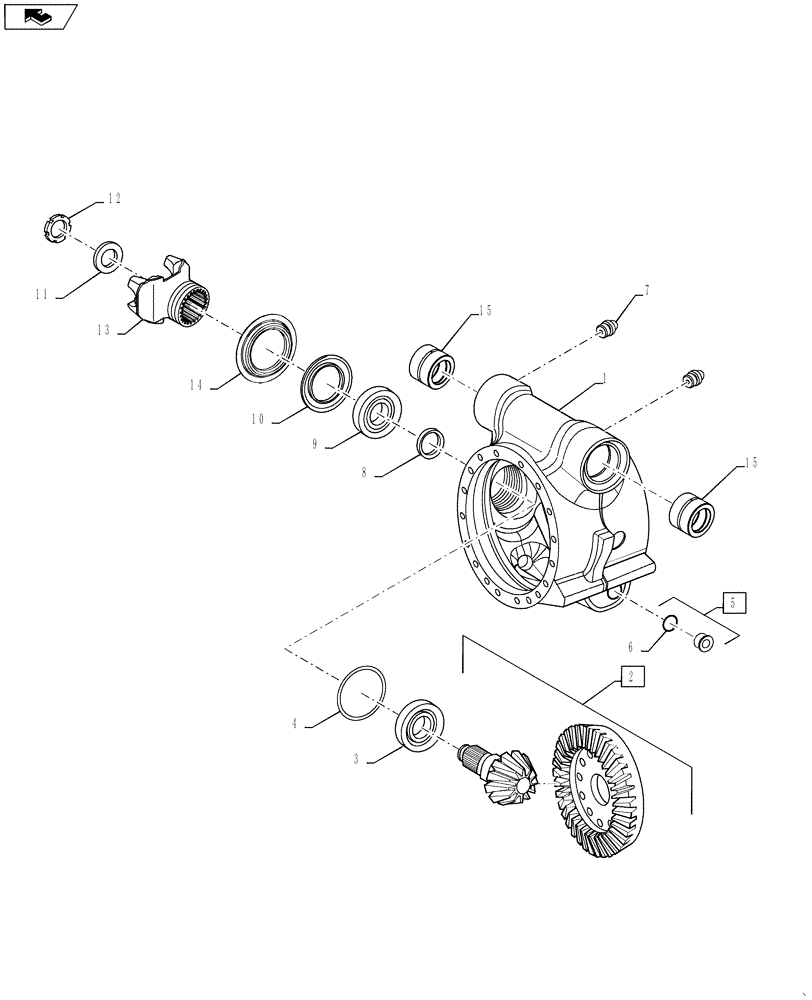

Схема запчастей Case 921F - (27.100.AS) - REAR AXLE DIFFERENTIAL CARRIER (27) - REAR AXLE SYSTEM
15
3
11
6
4
2
8
10
5
1
13
15
9
12
7
home
14

Артикул

Название

Примечание

Количество

1

84353901

AXLE HOUSING

Drive

1шт.

2

84353908

GEAR SET

Bevel

1шт.

3

87757170

ROLLER BEARING,70mm ID x 140mm OD x 39mm W

1шт.

4

8603238

SHIM,0.1mm Thk

1шт.

4

8603237

SHIM,0.2mm Thk

1шт.

4

8603236

SHIM,1.5mm Thk

1шт.

4

8603235

SHIM,1.4mm Thk

1шт.

4

8603234

SHIM,1.3mm Thk

1шт.

4

8603233

SHIM,1.2mm Thk

1шт.

4

8603232

SHIM,1.1mm Thk

1шт.

4

8603231

SHIM,1mm Thk

1шт.

4

8603230

SHIM,0.9mm Thk

1шт.

4

8603229

SHIM,0.8mm Thk

1шт.

4

8603228

WASHER,0.7mm Thk

1шт.

5

84262309

PLUG

Incl 6

1шт.

6

8605636

O-RING,2.2mm Thk x 33mm ID

1шт.

7

84353904

LUBE NIPPLE

2шт.

8

384457A1

SPACER,8.18mm Thk

Ring; 8.18mm Thk

1шт.

8

384455A1

SPACER,8.16mm Thk

Ring; 8.16mm Thk

1шт.

8

384454A1

SPACER,8.14mm Thk

Ring; 8.14mm Thk

1шт.

8

384452A1

SPACER,8.12mm Thk

Ring; 8.12mm Thk

1шт.

8

384451A1

SPACER,8.08mm Thk

Ring; 8.08mm Thk

1шт.

8

384450A1

SPACER,8.06mm Thk

Ring; 8.06mm Thk

1шт.

8

384449A1

SPACER,8.04mm Thk

Ring; 8.04mm Thk

1шт.

8

384448A1

SPACER,8.02mm Thk

Ring; 8.02mm Thk

1шт.

8

384447A1

SPACER,7.98mm Thk

Ring; 7.98mm Thk

1шт.

8

384446A1

SPACER,7.96mm Thk

Ring; 7.96mm Thk

1шт.

8

384444A1

SPACER,7.94mm Thk

Ring; 7.94mm Thk

1шт.

8

384443A1

SPACER,7.92mm Thk

Ring; 7.92mm Thk

1шт.

8

384441A1

SPACER,7.88mm Thk

Ring; 7.88mm Thk

1шт.

8

384440A1

SPACER,7.86mm Thk

Ring; 7.86mm Thk

1шт.

8

384439A1

SPACER,7.84mm Thk

Ring; 7.84mm Thk

1шт.

8

384438A1

SPACER,7.82mm Thk

Ring; 7.82mm Thk

1шт.

8

384436A1

SPACER,7.8mm Thk

Ring; 7.8mm Thk

1шт.

9

84353905

ROLLER BEARING,60mm ID x 125mm OD x 37mm W

1шт.

10

373828A1

SEAL,90mm ID x 140mm OD x 12mm Thk

Shaft

1шт.

11

119981A1

THRUST WASHER,51mm ID x 76.5mm OD x 5mm Thk

1шт.

12

119984A1

SLOTTED NUT

Slotted

1шт.

13

373829A1

FLANGE

Input, 821F

1шт.

13

84354757

FLANGE

Input, 921F

1шт.

14

84329432

SHIELD

1шт.

15

84353902

BEARING ASSY

2шт.

Выбрано товаров: 42
