Запчасти Case 921F (27.100.AB[05]) - REAR DIFFERENTIAL ASSEMBLY, DIFFERENTIAL LOCK (27) - REAR AXLE SYSTEM

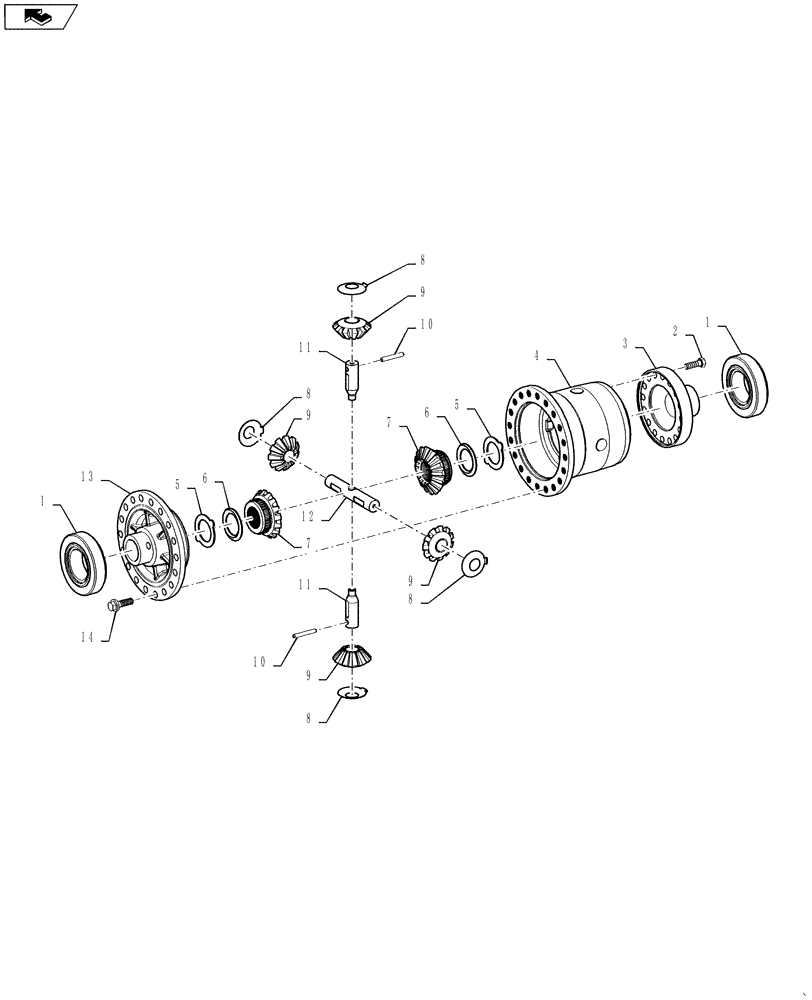

Схема запчастей Case 921F - (27.100.AB[05]) - REAR DIFFERENTIAL ASSEMBLY, DIFFERENTIAL LOCK (27) - REAR AXLE SYSTEM
11
home
12
6
8
3
2
9
11
8
9
4
7
1
7
1
6
10
9
10
9
8
8
5
14
13
5

Артикул

Название

Примечание

Количество

1

84330535

TAPERED BEARING

2шт.

2

84354752

HEX SOC SCREW

16шт.

3

84354751

COVER

Housing

1шт.

4

84353923

AXLE HOUSING

Differential

1шт.

5

120017A1

THRUST WASHER

Thrust

2шт.

6

120019A1

THRUST WASHER

Thrust

2шт.

7

242160A1

PINION

Differential Side 16T

2шт.

8

84353924

THRUST WASHER

4шт.

9

120018A1

PINION

Gear Differential

4шт.

10

84353927

SLOTTED PIN

2шт.

11

84353926

DIFFERENTIAL

Axle Pinion

2шт.

12

84353925

DIFFERENTIAL

Axle Pinion

1шт.

13

84330534

PROTECTIVE COVER

Housing

1шт.

14

184716A1

SCREW

20шт.

Выбрано товаров: 14
