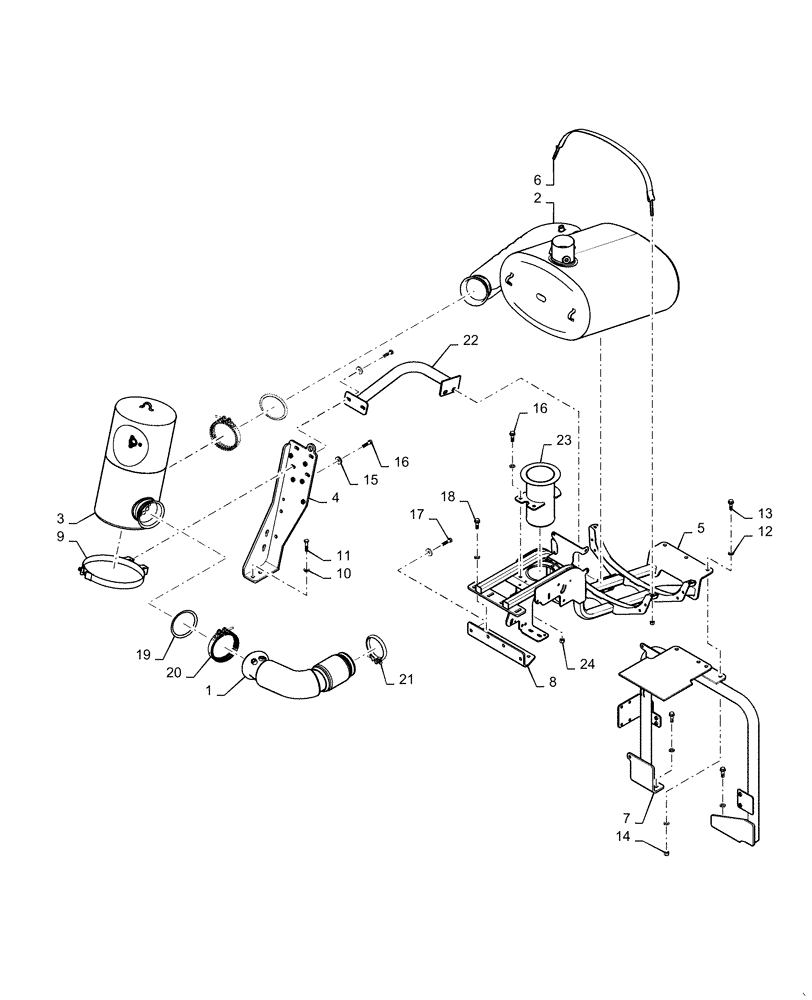

Запчасти Case 921F (10.500.AO) - SCR MUFFLER INSTALLATION (10) - ENGINE

1

47479031

EXHAUST SYSTEM PIPE

1шт.

2

47611808

MUFFLER

SCR Cluster 1

1шт.

3

47447004

MUFFLER

DOC Cluster A

1шт.

4

47490216

BRACKET

DOC Support

1шт.

5

47610643

FRAME

1шт.

6

47368370

SECURING STRAP

2шт.

7

47510413

SUPPORT

Muffler

1шт.

8

84601147

SUPPORT

Muffler

1шт.

9

47411265

CLAMP

DOC

2шт.

10

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

10шт.

11

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

6шт.

12

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

13

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

3шт.

14

832-10412

NUT,M12 x 1.75, Cl 8

3шт.

15

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

18шт.

16

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

11шт.

17

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.

18

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

19

47368248

GASKET,1.3mm Thk

2шт.

20

47390970

CLAMP,143mm

2шт.

21

47423211

CLAMP,118mm - 124mm

Exhaust Flaps

1шт.

22

47462124

SUPPORT

1шт.

23

47411177

PIPE

Air Intake, Under Hood

1шт.

24

832-10410

NUT,M10 x 1.5, Cl 8

3шт.
