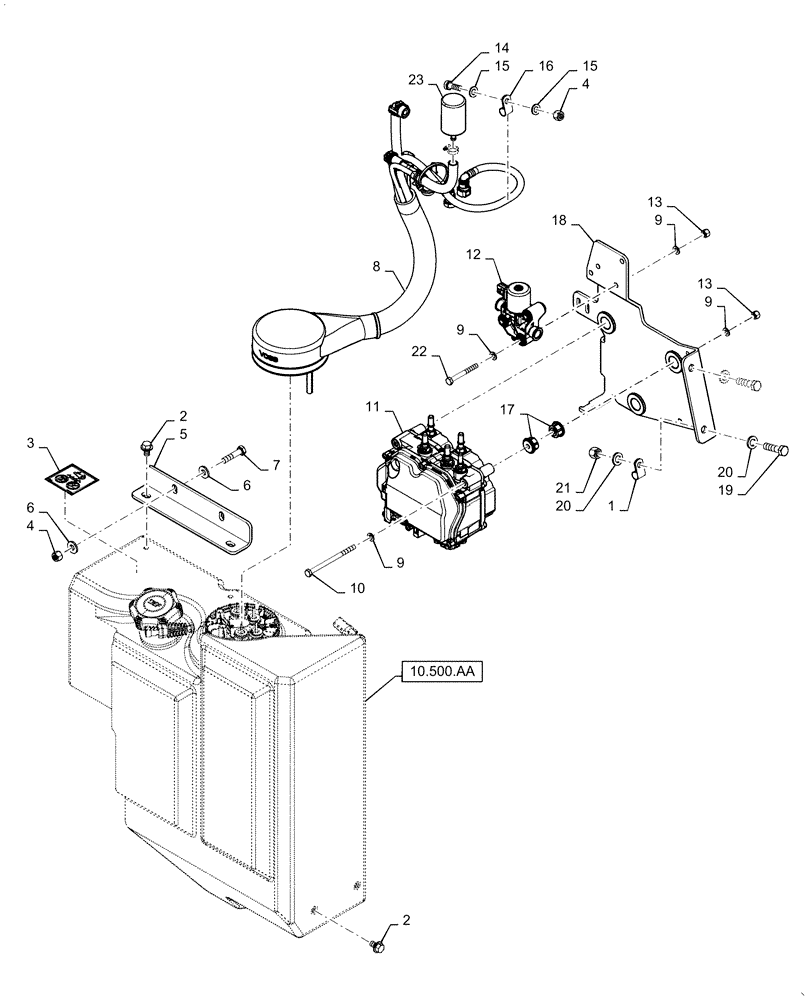

Запчасти Case 921F (10.500.AG) - DEF TANK AND LINES INSTALLATION (10) - ENGINE

1

515-2595

CLAMP,3/8", Insul, 1/2" Bolt

1шт.

2

86531147

BOLT,Hex, M10 x 16mm, Cl 8.8, Full Thd

4шт.

3

84284896

DECAL,DEF TANK identification label

1шт.

4

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

5

84299672

BRACKET

Tank Hold

1шт.

6

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

7

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

2шт.

8

47646628

HOSE

Tank to SM

1шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

12шт.

10

827-8120

BOLT,Hex, M8 x 1.25 x 120mm, Cl 10.9

3шт.

11

47565936

MODULE

1шт.

11

47565936R

REMAN-MODULE

1шт.

11

47565936C

CORE-MODULE

Return Number

1шт.

12

84466547

HEATER VALVE

1шт.

13

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

14

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

15

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

16

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

17

2855150

INSULATOR BLOCK

6шт.

18

47491588

BRACKET

Supply Module

1шт.

19

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

20

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

21

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

22

827-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

3шт.

23

47437399

FUEL FILTER

Fuel Tank Vent

1шт.
