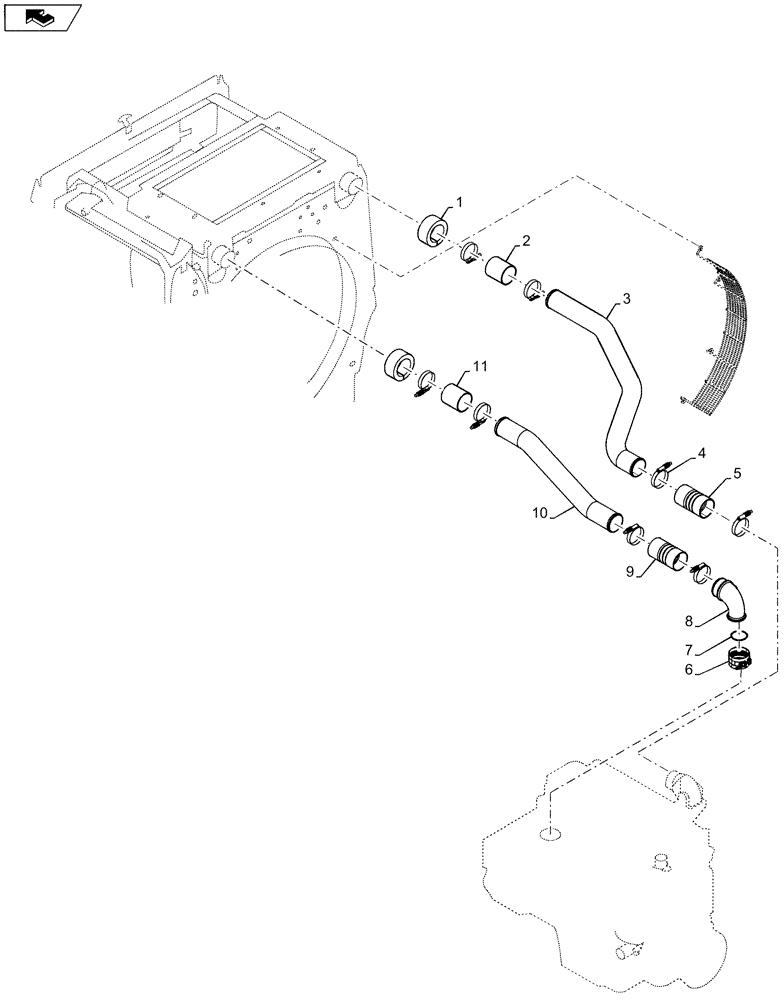

Запчасти Case 921F (10.400.AP[01]) - COOLING SYSTEM LINE INSTALLATION (10) - ENGINE

1

8500167

SEAL

Charge Air Tubes

2шт.

2

87572378

HOSE

Air Intake

1шт.

3

47623848

TUBE

Charge

1шт.

4

L115549

CLAMP,69.85mm - 92.08mm

Constant Torque

8шт.

5

87340015

INTAKE AIR HOSE,76.20mm ID x 140mm L

Charge Air

1шт.

6

J069053

CLAMP,66.54mm ID

Turbo Outlet V-Band

1шт.

7

J883284

O-RING,0.07" Thk x 2.364" ID, -36

Seal Turbo Outlet

1шт.

8

J918685

PIPE

Turbo Outlet Air Transfer

1шт.

9

87340284

INTAKE AIR HOSE,76.20mm ID x 129mm L

Charge Air

1шт.

10

84321160

AIR INTAKE TUBE

Charge Air Turbo

1шт.

11

87572375

HOSE,76.2mm ID x 89mm L

Air Intake

1шт.
