Запчасти Case 921F (10.216.BA) - FUEL LINE INSTALLATION (10) - ENGINE

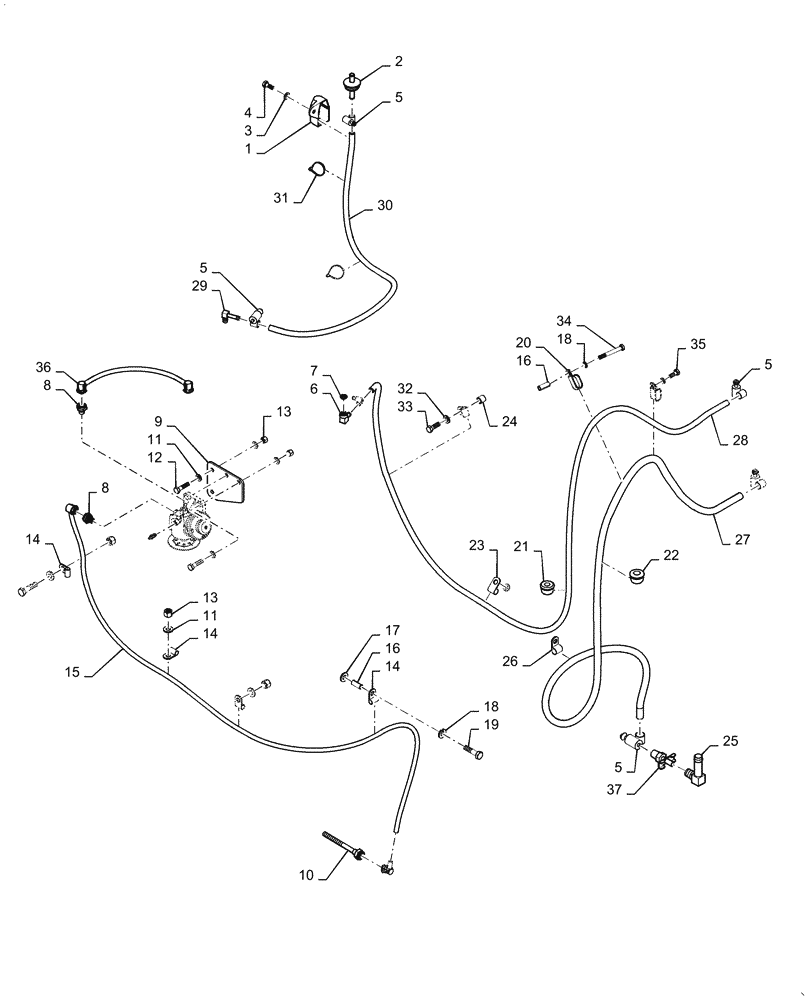

Схема запчастей Case 921F - (10.216.BA) - FUEL LINE INSTALLATION (10) - ENGINE
5
37
29
31
5
14
1
3
27
2
10
35
32
30
13
22
21
16
25
24
11
6
26
18
5
36
5
8
14
11
33
28
7
9
20
34
16
8
12
17
14
4
23
13
15
19
18

Артикул

Название

Примечание

Количество

1

186814A1

CAP

Fuel Tank Vent

1шт.

2

T103750

BREATHER

1шт.

3

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

4

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

5

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

6шт.

6

87400460

90 ELBOW

1шт.

7

87445404

O-RING,2.5mm Thk x 8mm ID, 60 Duro

1шт.

8

8602542

ADAPTER,M14 x 1.5 x 16mm ID x 7.90mm ID

2шт.

9

84216681

BRACKET

Fuel Filter

1шт.

10

8602537

TUBE,12mm OD x 171mm L

Tank Draw

1шт.

11

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

13шт.

12

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

5шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

7шт.

14

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

4шт.

15

84216623

TUBE

Fuel Tank To Prefilter

1шт.

16

L126936

SPACER

2шт.

17

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

1шт.

18

892-11010

LOCK WASHER,M10

3шт.

19

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

1шт.

20

L101181

CLAMP,0.75" D Clamping pipes x 2

Insulated

2шт.

21

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

1шт.

22

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

1шт.

23

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

2шт.

24

87307825

SPACER

1шт.

25

217-372

FITTING,90 Degree Elbow, 1/2" Hose Barb x 1/4" Male NPTF

Stem

1шт.

26

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

1шт.

27

87358040

FUEL HOSE,12.7mm ID x 2870mm L

Cooler To Tank

1шт.

28

87358043

FUEL HOSE

Engine To Cooler

1шт.

29

217-132

90 ELBOW,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

1шт.

30

87549248

HOSE,9.50 mm ID x 1130.00 mm

Breather

1шт.

31

L11541

CABLE TIE,203.2mm L, Nylon

7-8" Black Nylon

2шт.

32

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

33

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

1шт.

34

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

1шт.

35

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

36

84598569

TUBE

Prefilter To Engine

1шт.

37

217-92

COCK

Fuel Tank Drain

1шт.

Выбрано товаров: 37
