Запчасти Case 921F (90.160.BI) - INTERIOR TRIM COLUMNS (90) - PLATFORM, CAB, BODYWORK AND DECALS

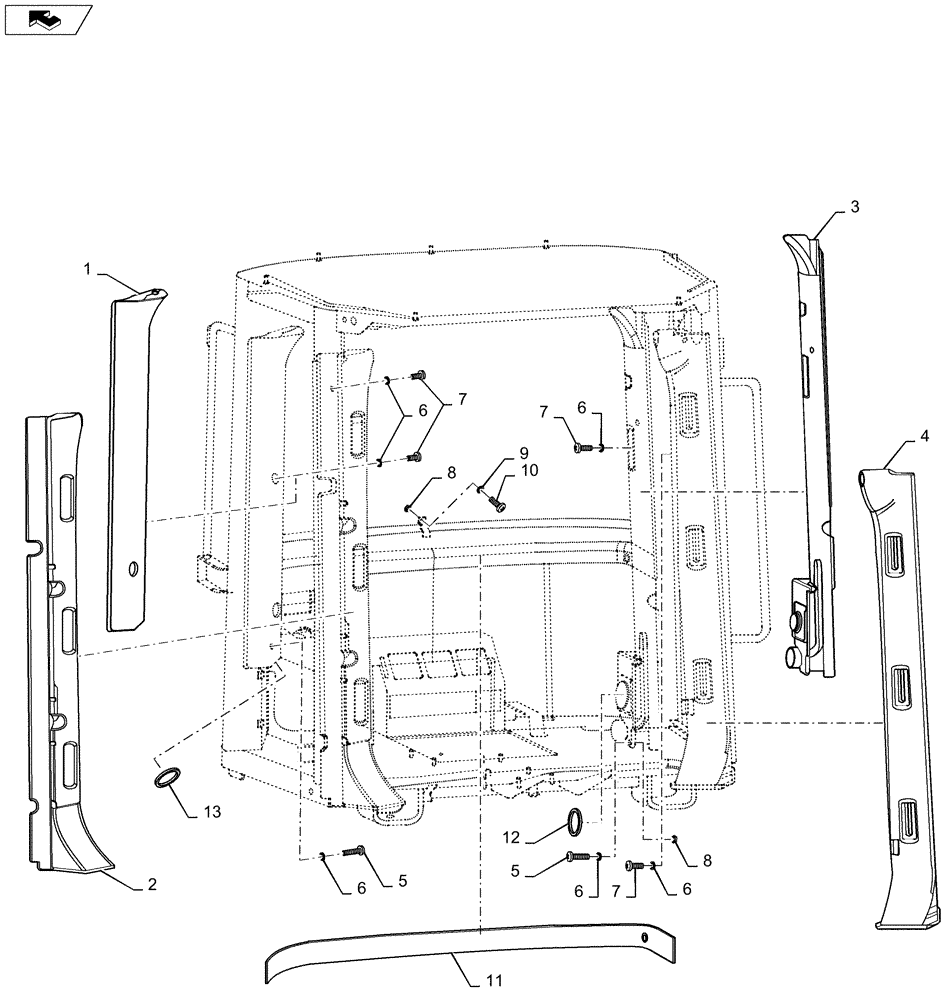

Схема запчастей Case 921F - (90.160.BI) - INTERIOR TRIM COLUMNS (90) - PLATFORM, CAB, BODYWORK AND DECALS
7
13
home
5
4
7
8
12
6
7
2
9
home
5
6
1
6
11
1
7
6
3
8
10
6

Артикул

Название

Примечание

Количество

1

76303037

TRIM PANEL

Rear Air Passage Right Side

1шт.

2

76303039

PILLAR

Front Air Passage Right Side

1шт.

3

84169786

AIR DUCT

Left Side Rear Air

1шт.

4

76303038

TRIM PANEL

Air Passage Front Left Side

1шт.

5

840-1630

SCREW,Pan, M6 x 30mm, Cl 4.8

2шт.

6

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

10шт.

7

840-1612

SCREW,Pan, M6 x 12mm, Cl 4.8

7шт.

8

833-40306

SPRING NUT,M6, U

3шт.

9

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

10

297850A1

SCREW,Cross Pan Hd, M6 x 16

3шт.

11

76303029

COVER

Rear Trim Strip

1шт.

12

76301020

SPRING NUT

Spring M6

1шт.

13

76303500

GASKET,Square, 10mm Thk x 70mm ID

Left Side

1-2шт.

Выбрано товаров: 13
