Запчасти Case 921F (90.151.AT) - MONITOR AND CAMERA INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

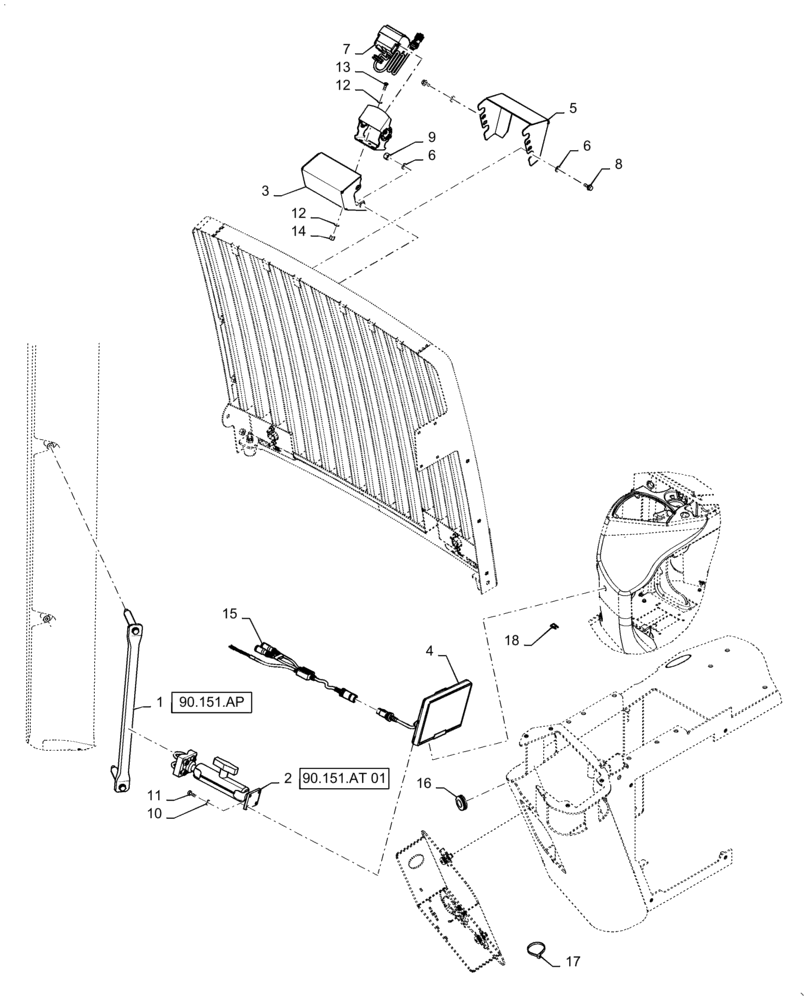

Схема запчастей Case 921F - (90.151.AT) - MONITOR AND CAMERA INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS
10
11
17
14
4
18
16
9
7
12
3
1
5
8
12
90.151.at 01
90.151.ap
13
2
15
6
6

Артикул

Название

Примечание

Количество

1

84337434

BAR

Mounting

1шт.

2

84336556

ARM

Display Arm

1шт.

3

47400417

BRACKET

Rearview Camera

1шт.

4

84377704

MONITOR

1шт.

5

47405023

COVER

Camera

1шт.

6

195-81023

WASHER,5.94mm ID x 14.28mm OD x 1.25mm Thk

12шт.

7

84315054

VIDEO CAMERA

Assembly

1шт.

8

845-6016

BOLT,Hex Flg, M6 x 16mm, Cl 8.8

8шт.

9

832-10406

NUT,M6 x 1, Cl 8

4шт.

10

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

4шт.

11

239225A1

SCREW,Phillips Drive, Pan HD, M4 x 0.7 x 12mm

4шт.

12

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

8шт.

13

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

4шт.

14

832-10405

NUT,M5 x .8, Cl 8

4шт.

15

84317692

WIRE HARNESS

Rear View Camera

1шт.

16

86026822

GROMMET,3/4" ID x 1-3/8" OD x 7/16" Thk

1шт.

17

L11541

CABLE TIE,203.2mm L, Nylon

15шт.

18

121410A1

FUSE,5A, Mini, Tan

1шт.

Выбрано товаров: 18
