(90.151.AN[01]) - CONSOLE AND COOLER ASSEMBLY

Запчасти Case 921F (90.151.AN[01]) - CONSOLE AND COOLER ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

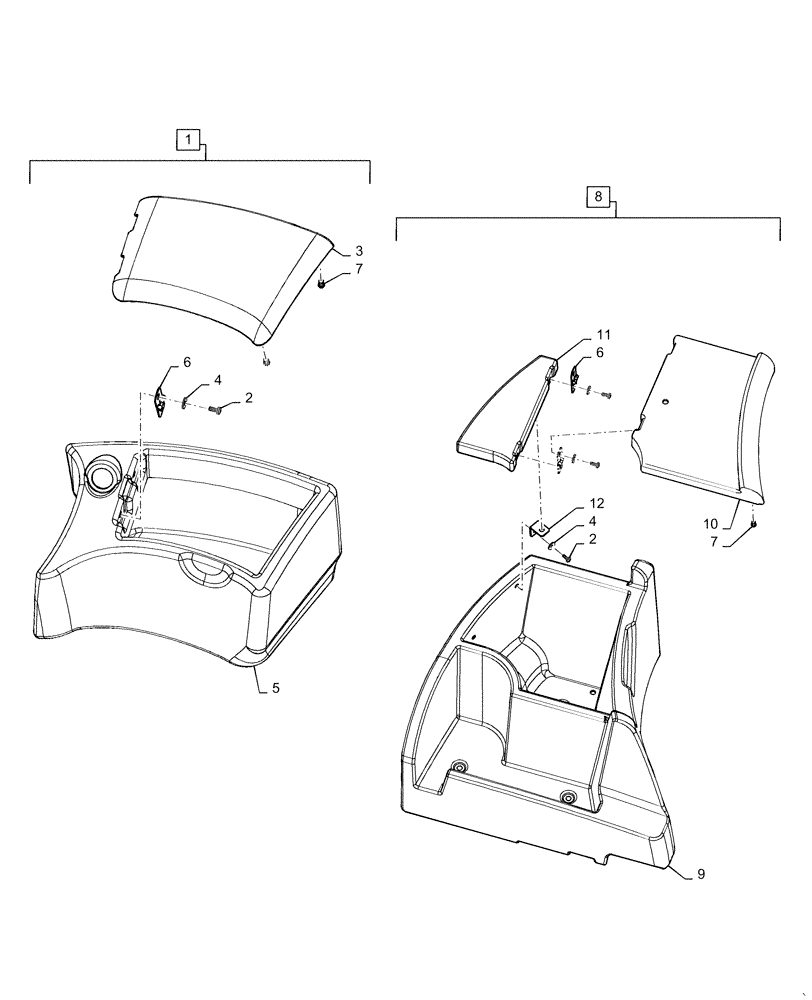

Схема запчастей Case 921F - (90.151.AN[01]) - CONSOLE AND COOLER ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
5
3
1
6
8
2
6
10
12
4
7
7
9
2
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

76303042

SUPPORT

Assembly, Incl 2 - 7

1шт.

2

840-1512

SCREW,Pan, M5 x 12mm, Gr 4.8

12шт.

3

84167316

COVER

Storage Right Side

1шт.

4

895-25005

WASHER,M5 x 15 x 1.6

12шт.

5

84167776

BOX

Storage

1шт.

6

76303262

HINGE

Assembly

4шт.

7

87614173

PLUG

4шт.

8

76303013

BOX

Cooler Assembly, Incl 2, 4, 6, 7, 9 - 12

1шт.

9

84169676

BOX

Storage Left Side

1шт.

10

76303035

COVER

Cool Box Trim

1шт.

11

76303348

COVER

Trim Cool Box Stationary

1шт.

12

76303437

BRACKET

For Cover

2шт.
