(90.151.AK[01]) - EXTERNAL REARVIEW MIRROR, HEATED

Запчасти Case 921F (90.151.AK[01]) - EXTERNAL REARVIEW MIRROR, HEATED (90) - PLATFORM, CAB, BODYWORK AND DECALS

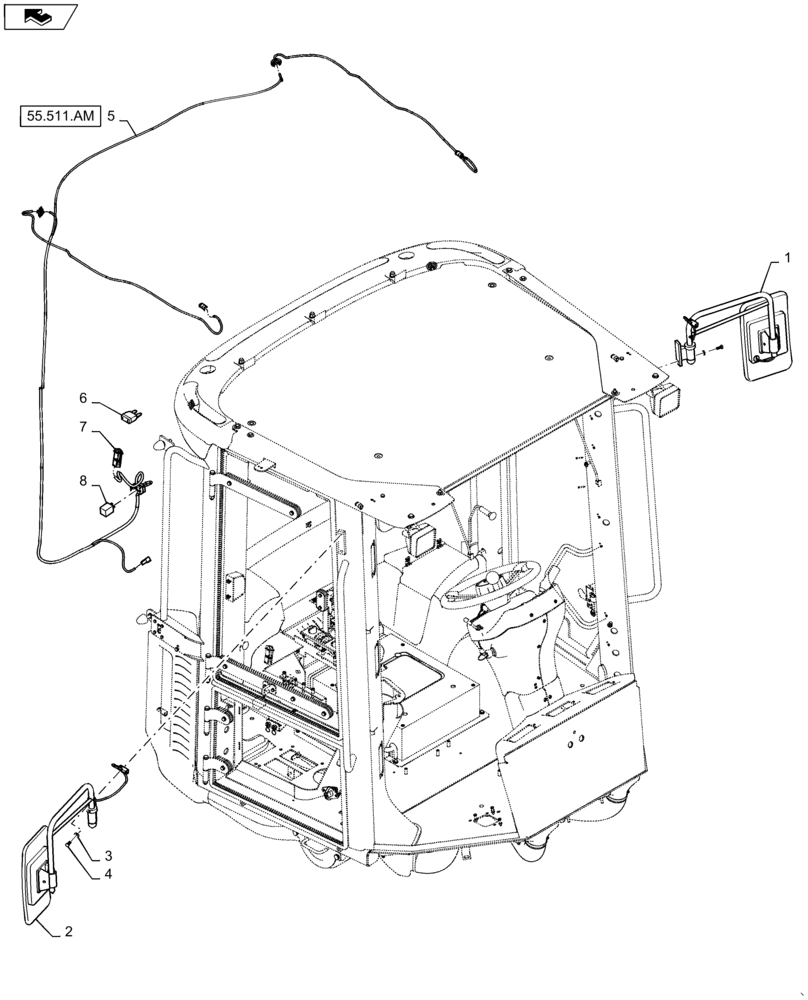

Схема запчастей Case 921F - (90.151.AK[01]) - EXTERNAL REARVIEW MIRROR, HEATED (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
2
1
home
5
6
7
8
4
55.511.am
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84494319

LH MIRROR

Assembly, Left

1шт.

2

84494318

RH MIRROR

Assembly, Right

1шт.

3

87664049

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

4

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

5

84494902

WIRE HARNESS

Cab Mirror

1шт.

6

121411A1

FUSE,7.5A, Mini, Brown

1шт.

7

84490718

MIRROR HEAT SWITCH

Heated Mirror

1шт.

8

84515582

RELAY

Time Delay 10 Min, 24V

1шт.
