Запчасти Case 921F (90.151.AD) - 3" SEAT BELT INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

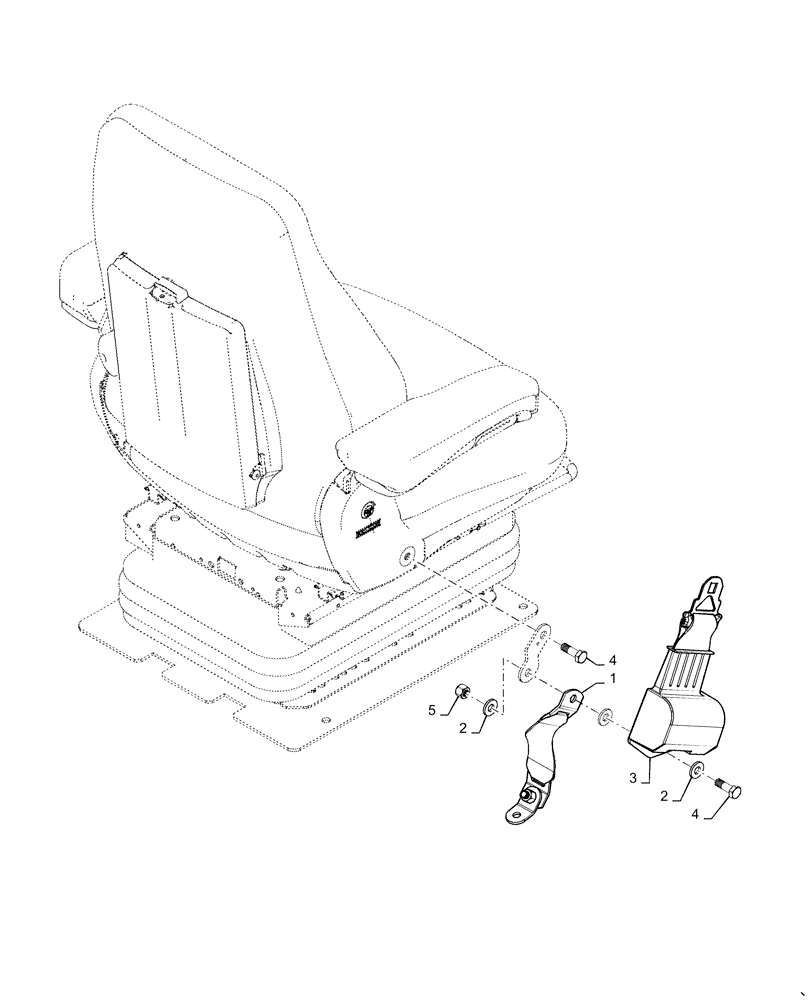

Схема запчастей Case 921F - (90.151.AD) - 3" SEAT BELT INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
3
5
1
4
4
2

Артикул

Название

Примечание

Количество

1

87545658

KIT

Includes Hardware

1шт.

2

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

6шт.

3

84425028

SEAT BELT,3 inch Wide Belt

3" Inch

1шт.

4

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

5

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

Выбрано товаров: 5
