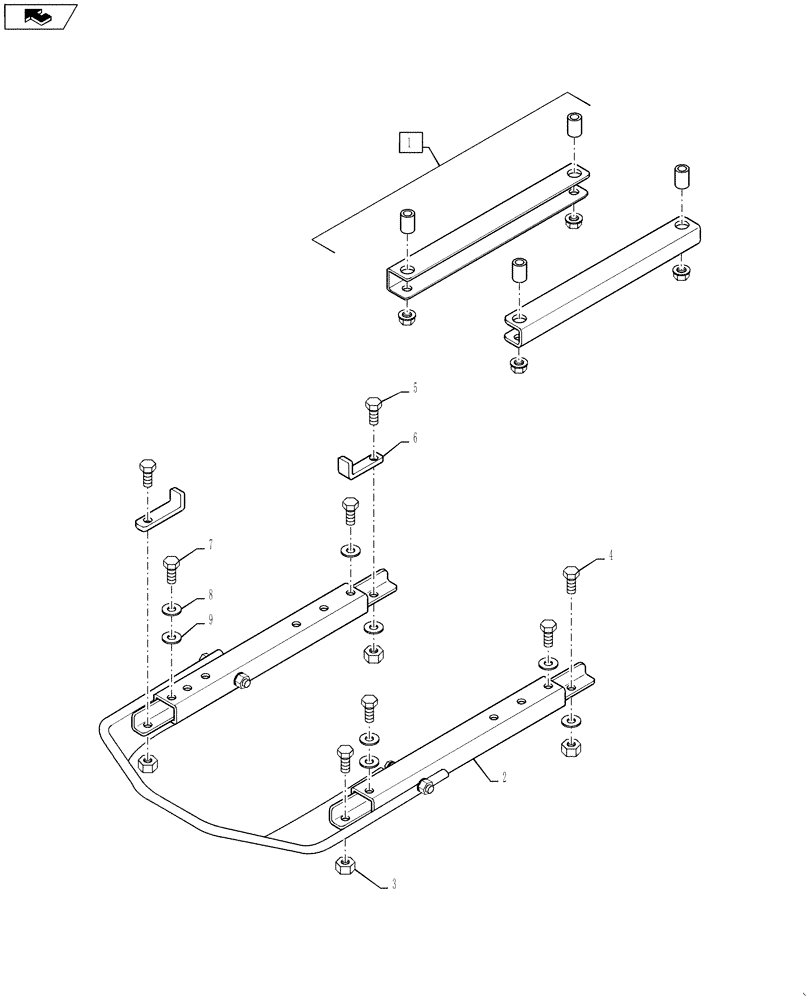

Запчасти Case 921F (90.120.BA) - MECHANICAL SEAT SLIDING GUIDES (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87583740

CONSOLE

1шт.

2

76084493

RAIL ASSY.

1шт.

3

87583752

NUT

5шт.

4

87583741

HEX SOC SCREW

4шт.

5

82034894

SCREW,M8 x 1.25 x 1.25mm

4шт.

6

87583737

STOP

Slide Rail

1шт.

7

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

4шт.

8

82034881

WASHER,8.4mm ID

3шт.

9

9960692

WASHER

5шт.
