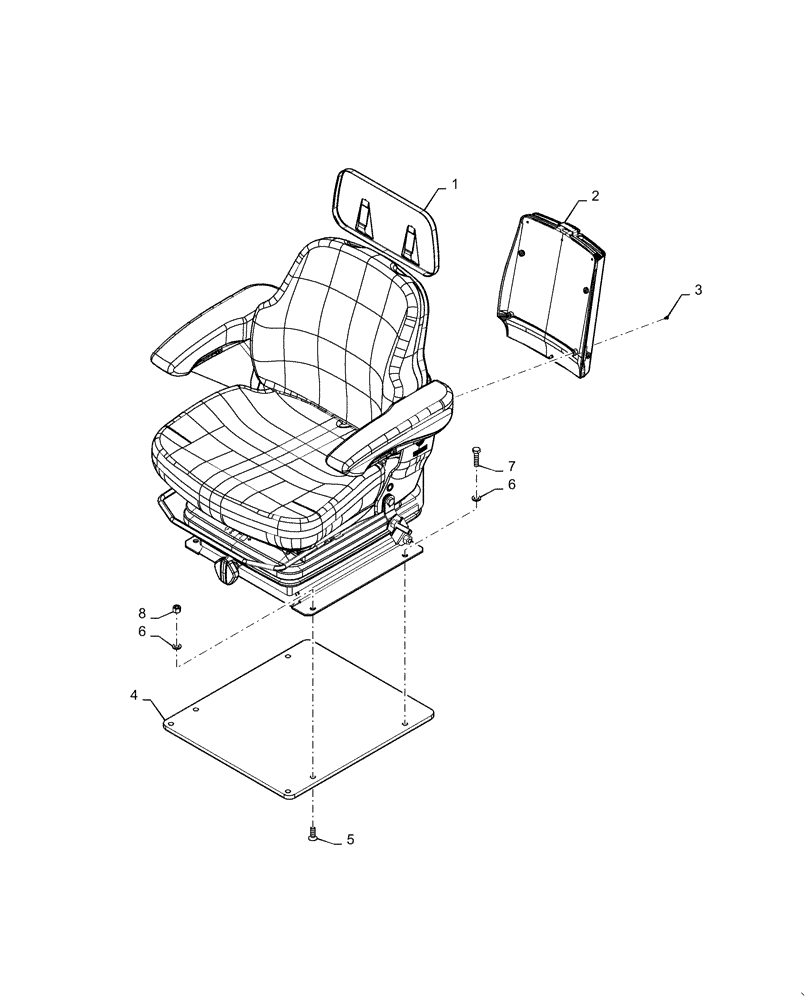

Запчасти Case 921F (90.120.AD) - SEAT INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

399261A1

DRIVER SEAT

1шт.

2

82034977

PLASTIC CASE

Literature Box

1шт.

3

82034863

SCREW,M4 x 8mm

3шт.

4

84132813

PLATE

Spacer

1шт.

5

906037R1

HEX SOC SCREW,FLAT, M10 x 30mm, Cl 10.9

2шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

7

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

4шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

2шт.
