Запчасти Case 921F (90.118.BX) - LEFT SIDE STANDARD STEP INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

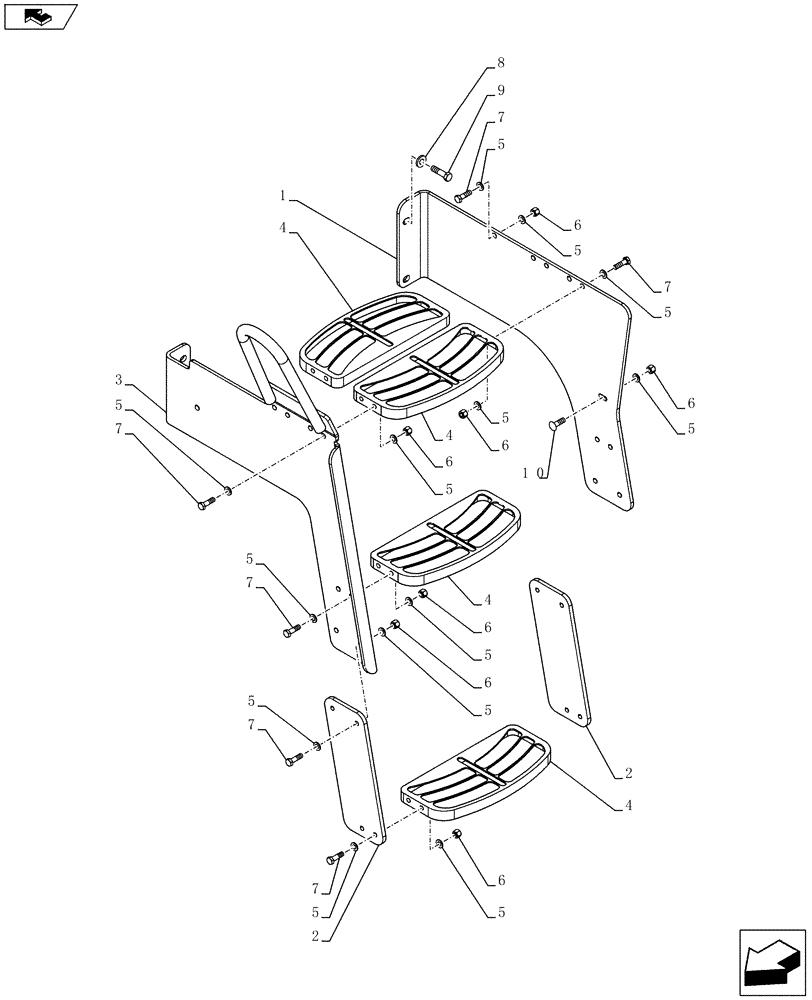

Схема запчастей Case 921F - (90.118.BX) - LEFT SIDE STANDARD STEP INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
7
7
8
4
6
2
5
6
10
5
4
5
5
4
5
7
3
6
5
2
5
1
6
home
5
5
5
7
5
6
4
7
6
7
5
9
5

Артикул

Название

Примечание

Количество

1

84194971

BRACKET, SUPPORTING

Left Hand Step Support Rear

1шт.

2

87434096

STRAP

Lower Entry

2шт.

3

84297999

BRACKET, SUPPORTING

Left Hand Steps

1шт.

4

47639539

STEP

4шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

43шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

22шт.

7

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

21шт.

8

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

9

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.

10

811-10035

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 35mm, Cl 8.8

1шт.

Выбрано товаров: 10
