(90.118.BX[04]) - RIGHT SIDE WIDE STEP INSTALLATION

Запчасти Case 921F (90.118.BX[04]) - RIGHT SIDE WIDE STEP INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

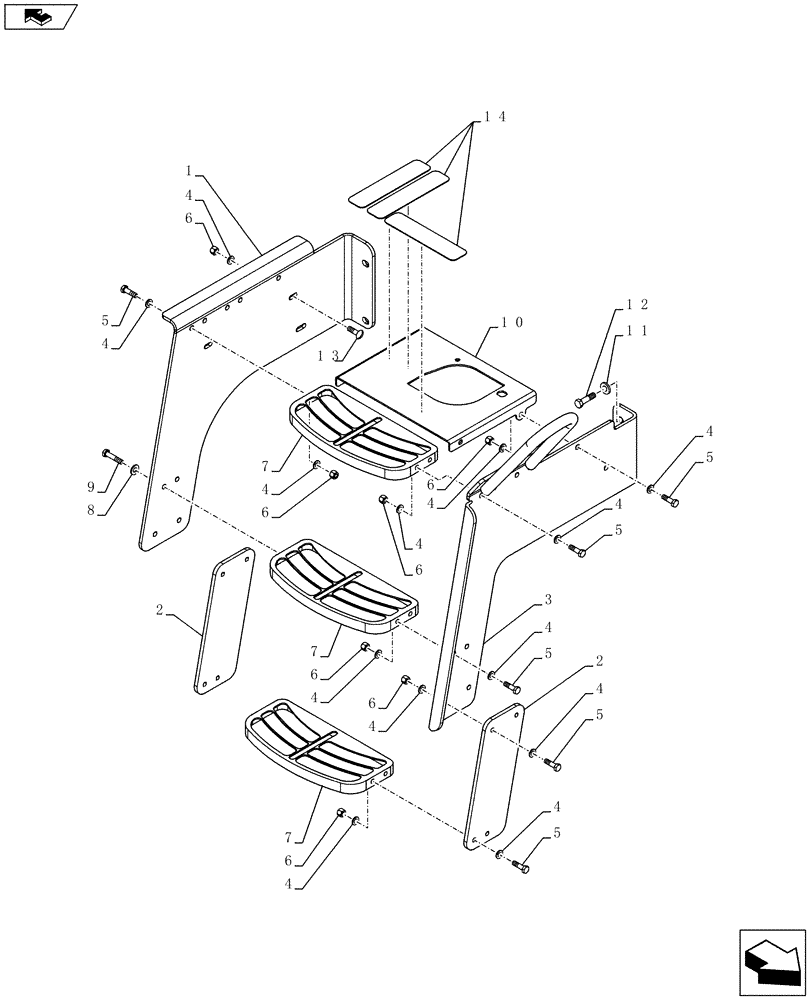

Схема запчастей Case 921F - (90.118.BX[04]) - RIGHT SIDE WIDE STEP INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
5
6
13
4
4
12
4
5
3
5
6
4
5
14
4
8
4
2
4
6
4
4
7
6
11
1
6
9
6
4
4
10
7
5
2
4
4
7
6
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84257939

BRACKET, SUPPORTING

Right Hand Step Rear

1шт.

2

87434096

STRAP

Lower Entry

2шт.

3

84257935

BRACKET, SUPPORTING

Right Hand Step Front

1шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

42шт.

5

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

19шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

23шт.

7

47639539

STEP

Step

3шт.

8

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

2шт.

9

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

10

84395997

PLATFORM

Right Hand Steps

1шт.

11

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

12

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.

13

811-10035

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 35mm, Cl 8.8

2шт.

14

D55216

PAD,2" x 9"

3шт.
