(90.118.BX[03]) - LEFT SIDE WIDE STEP INSTALLATION

Запчасти Case 921F (90.118.BX[03]) - LEFT SIDE WIDE STEP INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

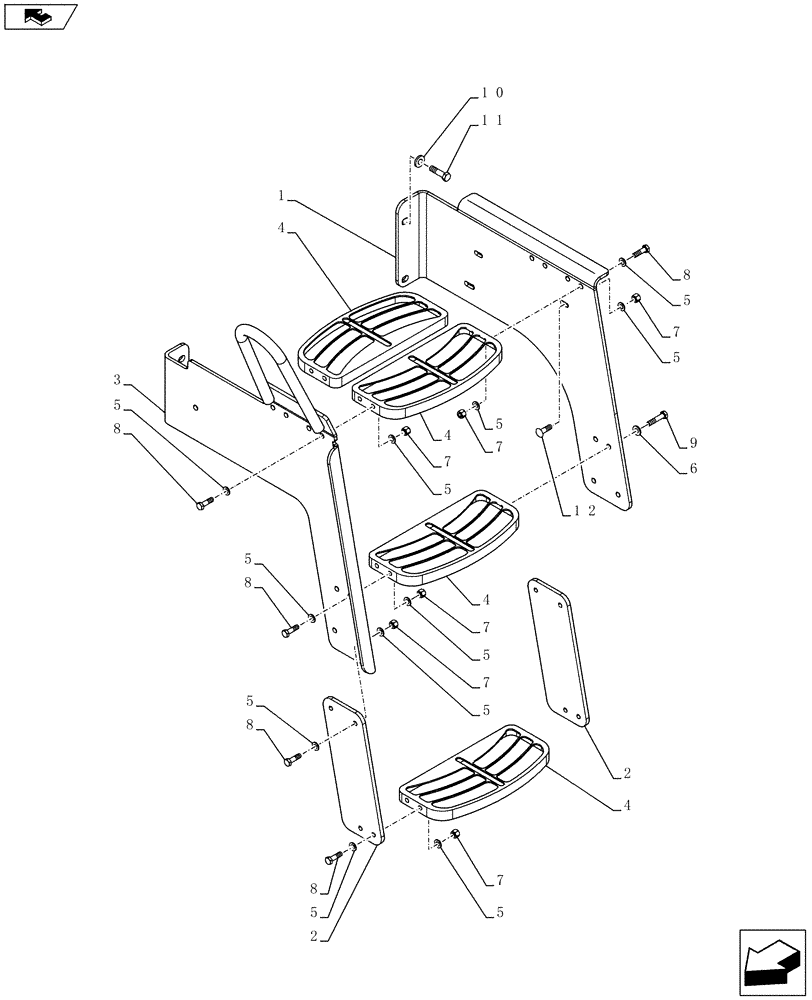

Схема запчастей Case 921F - (90.118.BX[03]) - LEFT SIDE WIDE STEP INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
5
9
2
4
1
4
10
7
5
7
8
5
8
8
5
5
4
7
5
5
11
home
4
5
7
7
5
8
5
8
12
6
2
7
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84194985

HOLDER

Left Hand Step Support Rear

1шт.

2

87434096

STRAP

Lower Entry

2шт.

3

84297999

BRACKET, SUPPORTING

Left Hand Step Support Front

1шт.

4

47639539

STEP

4шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

40шт.

6

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

2шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

22шт.

8

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

18шт.

9

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

10

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

11

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.

12

811-10035

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 35mm, Cl 8.8

2шт.
