Запчасти Case 921F (90.118.BX[02]) - RIGHT SIDE STANDARD STEP INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

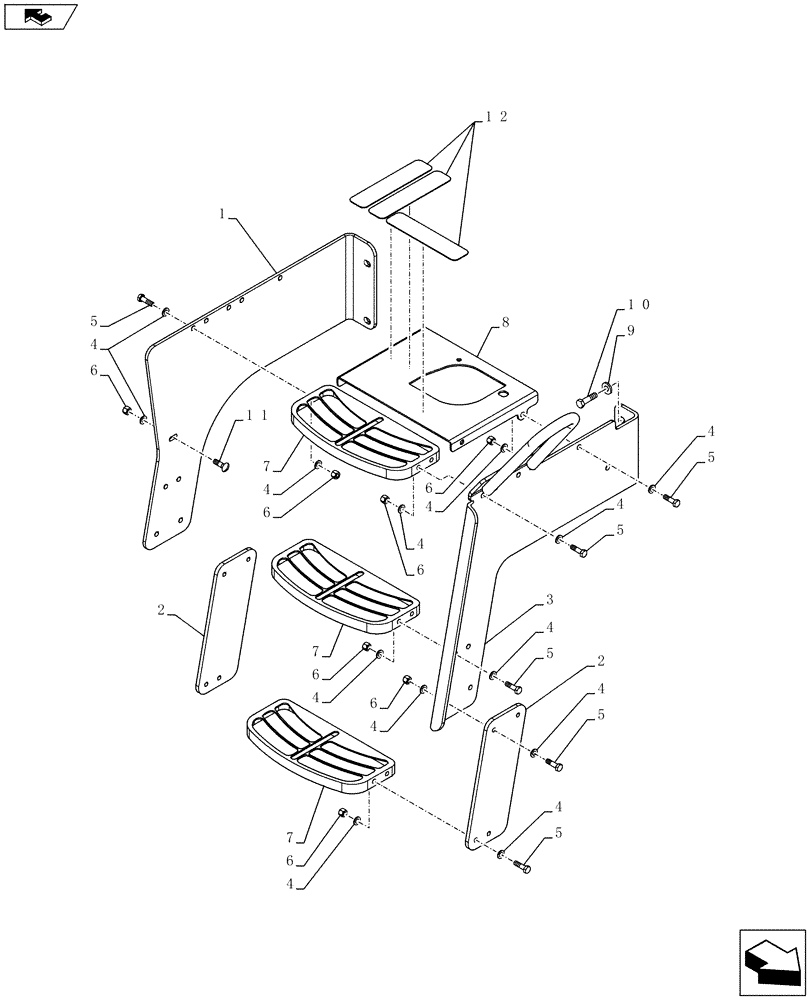

Схема запчастей Case 921F - (90.118.BX[02]) - RIGHT SIDE STANDARD STEP INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
2
3
9
5
4
7
7
4
12
6
5
6
4
6
4
4
4
11
4
6
10
5
1
4
8
5
7
4
4
2
6
5
6
5
4
home
4

Артикул

Название

Примечание

Количество

1

84194974

BRACKET

Right Hand Step Support Rear

1шт.

2

87434096

STRAP

Lower Entry

2шт.

3

84257934

BRACKET, SUPPORTING

Right Hand Steps

1шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

43шт.

5

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

21шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

22шт.

7

87434472

STEP

3шт.

8

84374000

PLATFORM

Right Hand Steps

1шт.

9

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

10

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.

11

811-10035

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 35mm, Cl 8.8

1шт.

12

D55216

PAD,2" x 9"

3шт.

Выбрано товаров: 12
