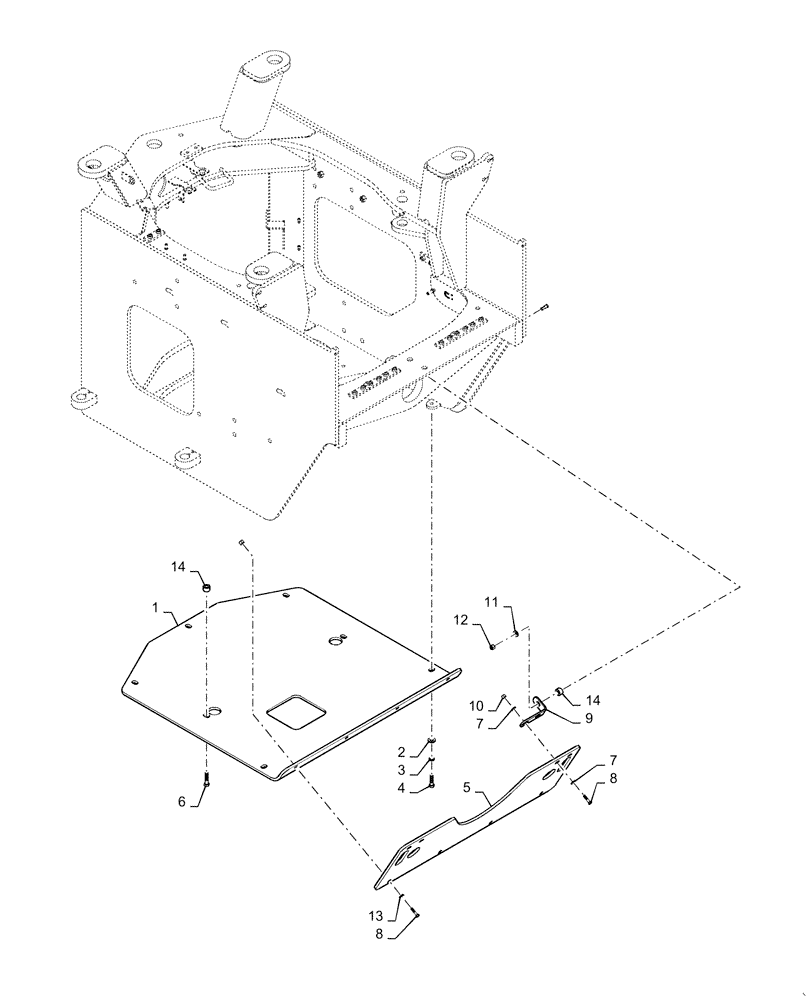

Запчасти Case 921F (90.116.BE) - REAR CHASSIS SKID PLATE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87593940

SKID PLATE

1шт.

2

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

7шт.

3

892-11012

LOCK WASHER,M12

7шт.

4

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

5шт.

5

84370857

SKID PLATE

1шт.

6

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

7

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

8

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

8шт.

9

87593947

BRACKET

Skid Plate

2шт.

10

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

11

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

13

892-11008

LOCK WASHER,8mm ID

4шт.

14

372947A1

SPACER

4шт.
