Запчасти Case 921F (90.116.BA[02]) - RIGHT SIDE FENDER SUPPORT BRACKET STANDARD (90) - PLATFORM, CAB, BODYWORK AND DECALS

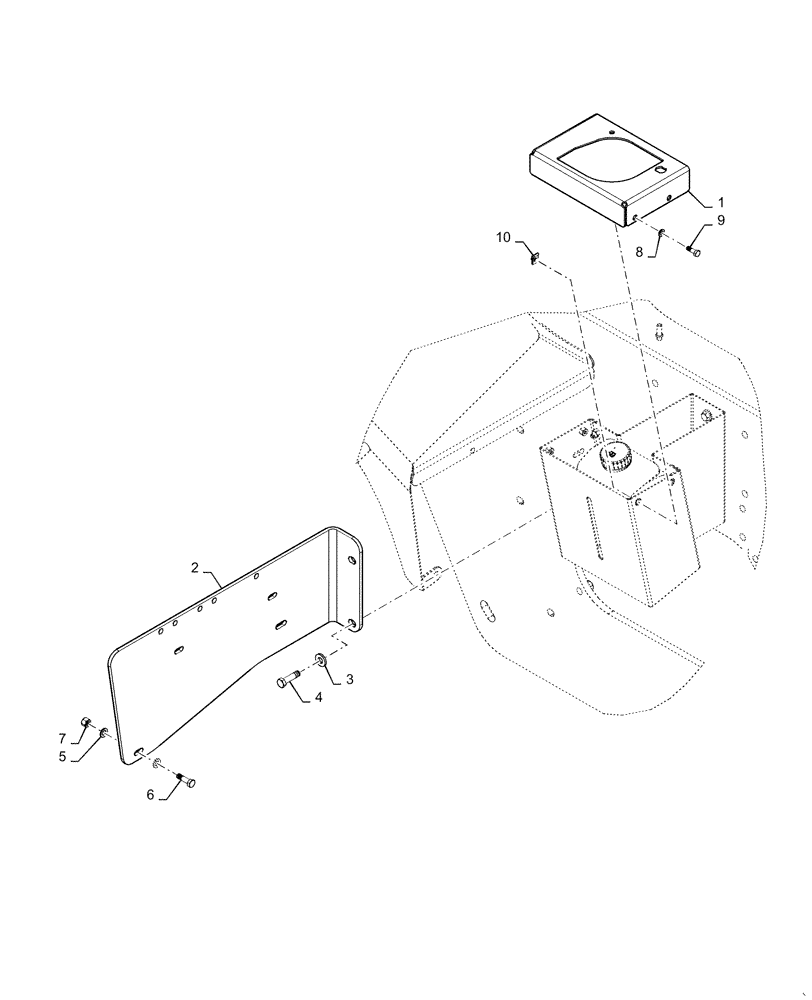

Схема запчастей Case 921F - (90.116.BA[02]) - RIGHT SIDE FENDER SUPPORT BRACKET STANDARD (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
5
7
8
6
4
9
3
1
10

Артикул

Название

Примечание

Количество

1

47407573

COVER

Washer Bottle

1шт.

2

84194979

BRACKET

Right Hand Fender Support

1шт.

3

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

4

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

6

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

3шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

9

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

10

833-40408

NUT,M8, U

4шт.

Выбрано товаров: 10
