Запчасти Case 921F (90.108.AC[02]) - SAFETY DECALS, FRENCH CANADIAN (90) - PLATFORM, CAB, BODYWORK AND DECALS

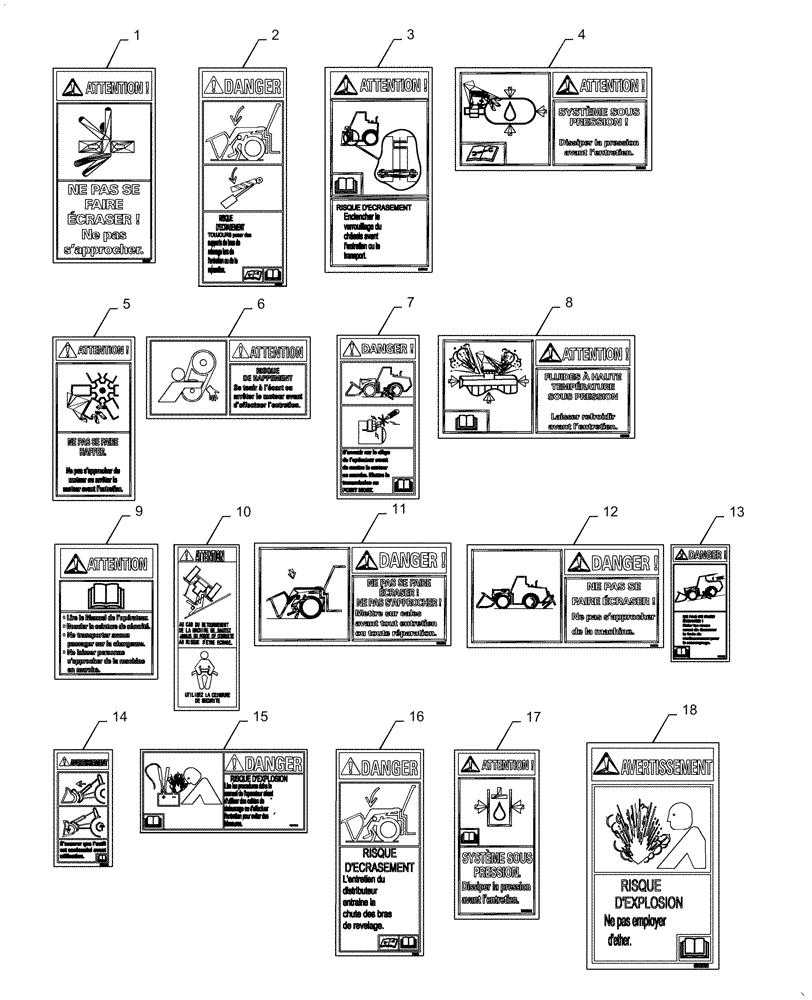

Схема запчастей Case 921F - (90.108.AC[02]) - SAFETY DECALS, FRENCH CANADIAN (90) - PLATFORM, CAB, BODYWORK AND DECALS
7
8
1
16
10
18
11
15
2
17
3
9
12
13
4
6
5
14

Артикул

Название

Примечание

Количество

1

334577A1

DECAL

Warning; Crush Hazard

2шт.

2

407738A2

DECAL

Lift Arm Support

1шт.

3

334574A1

DECAL

Warning; Crush Hazard

1шт.

4

334012A1

DECAL

Warning; Pressurized System Hazard

2шт.

5

87488607

DECAL

Warning; Fan

3шт.

6

388157A1

DECAL

Warning; Belt Entanglement

1шт.

7

87488617

DECAL

Danger; Starting In Gear

1шт.

8

334663A1

WARNING DECAL

Hot Liquid Hazard

1шт.

9

333999A2

DECAL

Warning; Read The Operator's Manual

1шт.

10

124269A1

DECAL

Do Not Jump

1шт.

11

334678A1

DECAL

Danger; Crush Hazard

1шт.

12

334686A1

DECAL

Warning; Runover Hazard

1шт.

13

334706A1

DECAL

Caution; Block Wheels

1шт.

14

364919A1

DECAL

Warning; Check Attachment

1шт.

15

412473A1

DECAL

Danger; Battery Explosion Hazard

2шт.

16

87453133

DECAL

Danger; Crush Hazard

2шт.

17

336010A1

DECAL

Warning; Pressurized System Hazard

2шт.

18

8603093

WARNING DECAL

Ether Explosion

3шт.

Выбрано товаров: 18
