Запчасти Case 921F (90.100.AE[01]) - HOOD MOUNTING HARDWARE (90) - PLATFORM, CAB, BODYWORK AND DECALS

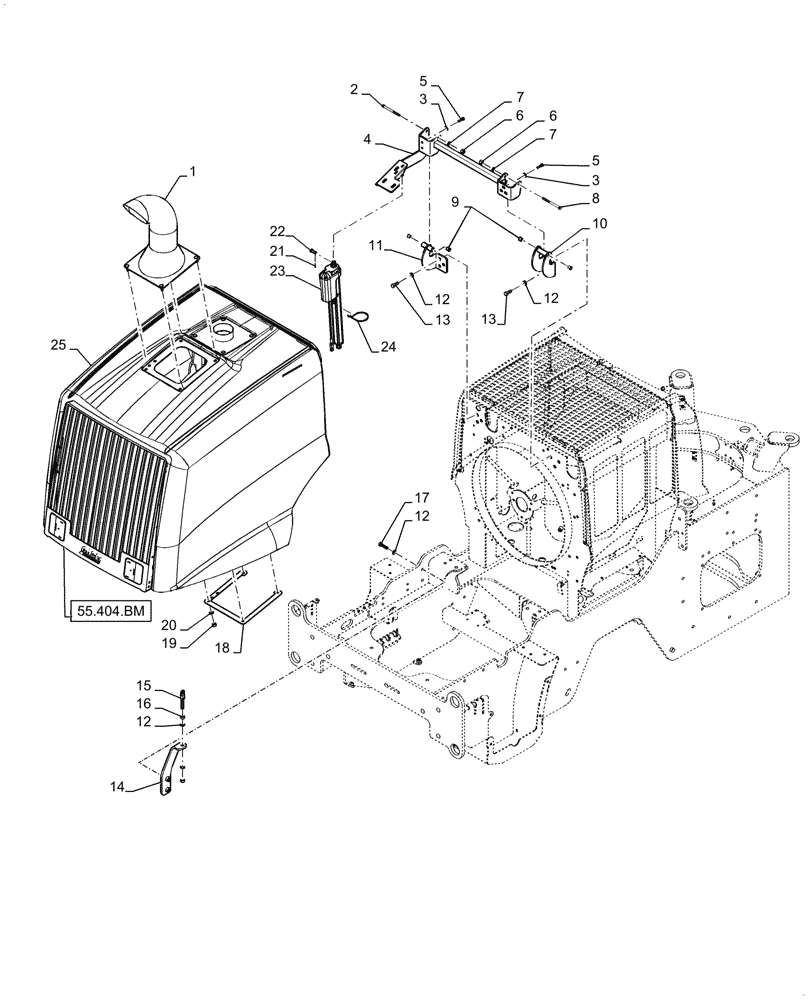

Схема запчастей Case 921F - (90.100.AE[01]) - HOOD MOUNTING HARDWARE (90) - PLATFORM, CAB, BODYWORK AND DECALS
55.404.bm
8
6
16
12
24
12
25
22
7
1
12
15
6
11
18
13
10
12
3
23
5
2
14
9
3
21
7
13
19
4
12
17
5
20

Артикул

Название

Примечание

Количество

1

47417626

EXHAUST SYSTEM PIPE

1шт.

2

827-12140

BOLT,Hex, M12 x 1.75 x 140mm, Cl 10.9

1шт.

3

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

8шт.

4

47488710

HINGE

Hood Mount

1шт.

5

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

8шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

7

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

8

827-12150

BOLT,Hex, M12 x 1.75 x 150mm, Cl 10.9

1шт.

9

382495A1

BUSHING

Flange

4шт.

10

47488716

HINGE

Half, Right Hand

1шт.

11

47425352

HINGE

Hood Mount, Left Hand

1шт.

12

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

9шт.

13

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

5шт.

14

84375238

BRACKET, SUPPORTING

Jack Base

1шт.

15

87531205

ROD

Adjuster, Hood Actuator

1шт.

16

829-1416

NUT,M16, Cl 10

2шт.

17

827-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

2шт.

18

47397265

PLATE

Exhaust Backing

1шт.

19

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

20

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

21

733-3220

COTTER PIN,M3.2 x 20

2шт.

22

728-1240

CLEVIS PIN,M12 x 40

2шт.

23

47429542

ACTUATOR

279mm Stroke

1шт.

24

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

25

47490033

ENGINE HOOD

1шт.

Выбрано товаров: 25
