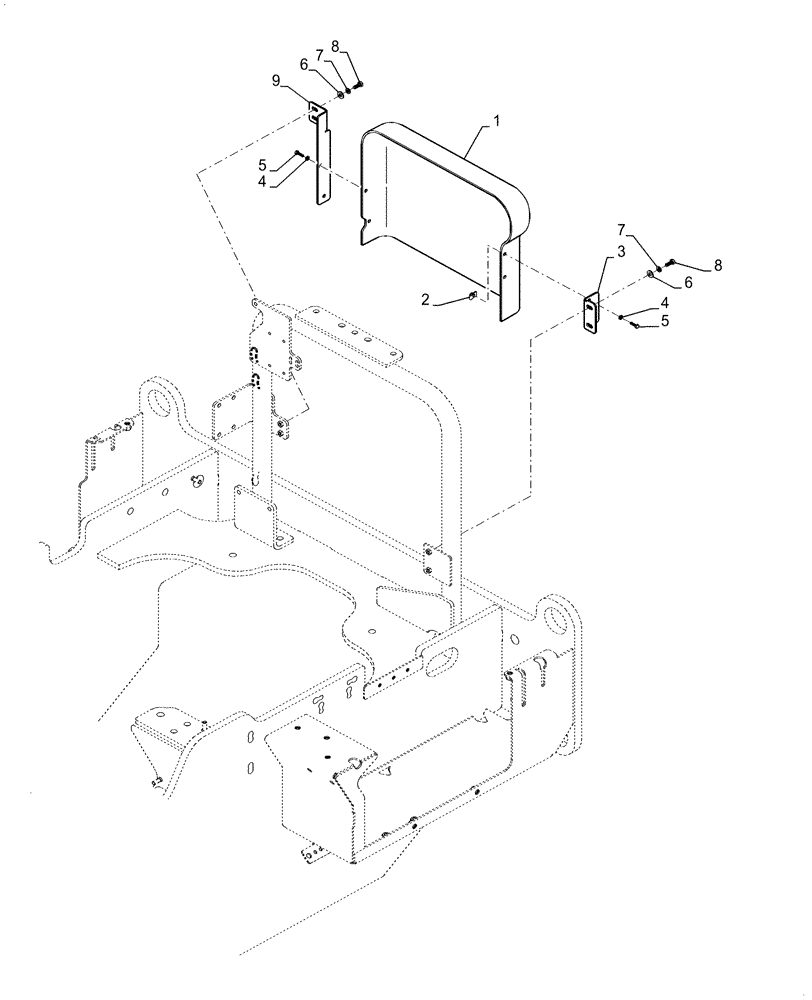

Запчасти Case 921F (10.102.AA) - DRIVE BELT COVER, WITHOUT AIR CONDITIONING (10) - ENGINE

1

47514068

GUARD

Engine Accessory

1шт.

2

833-40306

SPRING NUT,M6, U

4шт.

3

47511186

BRACKET

Left Hand Engine Guard

1шт.

4

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

5

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

6

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

7

892-11008

LOCK WASHER,8mm ID

4шт.

8

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

9

47511191

BRACKET

Right Hand Engine Guard

1шт.
