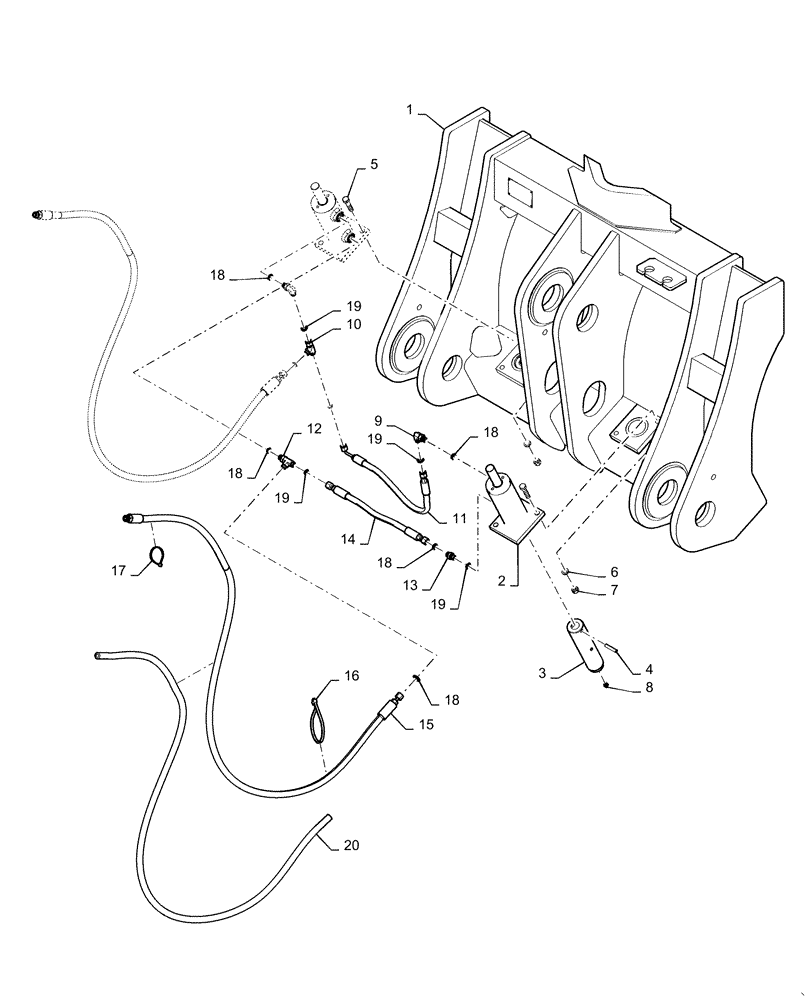

Запчасти Case 921F (82.300.AX) - QUICK COUPLER INSTALLATION (82) - FRONT LOADER & BUCKET

1

84548581

FRAME

Coupler

1шт.

2

84538634

HYDRAULIC CYLINDER

For Seal Kit See 21

2шт.

3

84560963

PIN,50.8mm OD x 213.4mm L

Plunger

2шт.

4

87023162

PIN,9.53mm OD x 44.45mm L

Coiled Spring

2шт.

5

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

6

892-11012

LOCK WASHER,M12

4шт.

7

829-1412

NUT,M12, Cl 10.9

4шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

9

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

2шт.

10

701-421

TEE,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

1шт.

11

84548508

HOSE ASSY.

1шт.

12

700-456

TEE,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

1шт.

13

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

1шт.

14

84548511

HOSE ASSY.

1шт.

15

84577432

HOSE ASSY.

2шт.

16

L18331

CABLE TIE,375.9mm L, Nylon, Black

3шт.

17

86566989

CABLE TIE,208mm L

4шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

7шт.

19

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

4шт.

20

47112456

SLEEVE

Protective

2шт.

21

84538637

SEAL

Seal Kit

1шт.
