Запчасти Case 921F (82.300.AN[01]) - LOADER BUCKET WITH TEETH AND SKID PADS (82) - FRONT LOADER & BUCKET

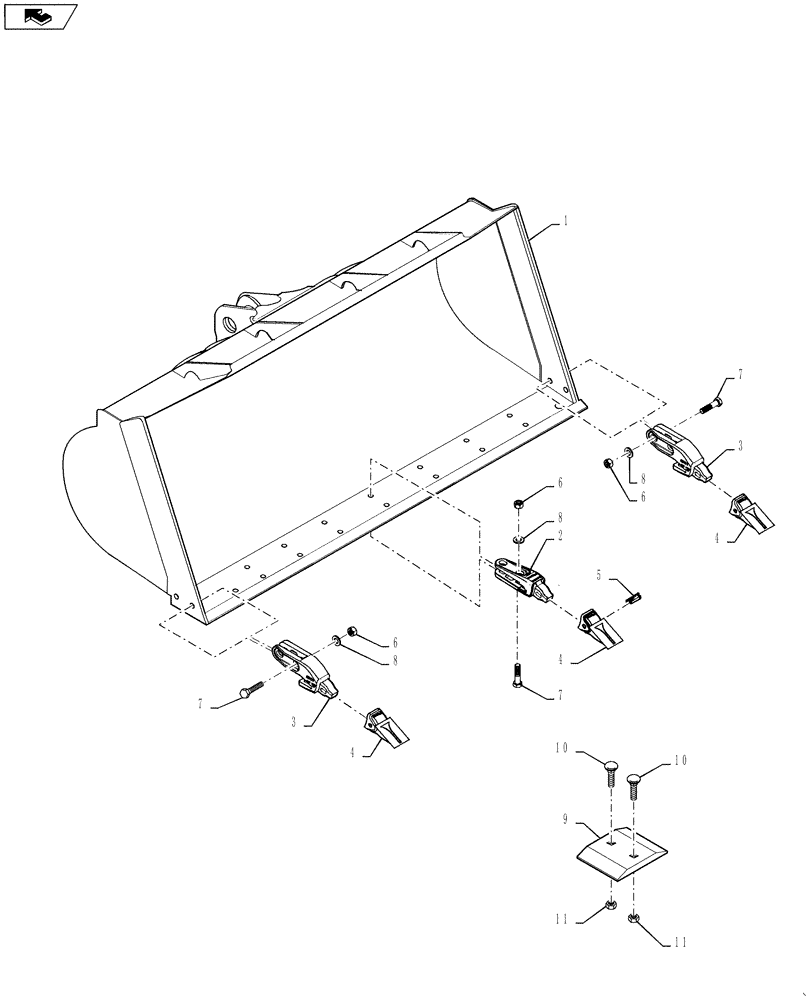

Схема запчастей Case 921F - (82.300.AN[01]) - LOADER BUCKET WITH TEETH AND SKID PADS (82) - FRONT LOADER & BUCKET
7
1
9
3
8
6
7
3
10
6
4
11
7
10
11
4
5
6
home
8
8
4
2

Артикул

Название

Примечание

Количество

1

84224939

BUCKET

4.00 Yd With Teeth Inc. 2-11 Ship Direct Option

1шт.

1

84150070

BUCKET

4.75 Yd With Teeth Inc. 2-11 Ship Direct Option

1шт.

2

84168134

BUCKET TOOTH SHANK

Adapter Center

7шт.

3

84168137

BUCKET TOOTH SHANK

Adapter Corner

2шт.

4

84168135

BUCKET TOOTH

9шт.

4

84216208

BUCKET TOOTH

Rock Chisel (SF15RC)

9шт.

4

84216210

BUCKET TOOTH

General Purpose (SF15SYL)

9шт.

4

84216211

BUCKET TOOTH

Tiger (SF15TV)

9шт.

4

84216212

BUCKET TOOTH

Twin Tiger (SF15UT)

9шт.

4

84216213

BUCKET TOOTH

Flare (SF15F)

9шт.

4

84216214

BUCKET TOOTH

Heavy Penetrater (SF15HP)

9шт.

4

84216215

BUCKET TOOTH

Rock Loader (SF15RL)

9шт.

5

84168136

BUCKET TOOTH KEY

9шт.

6

429-1016

NUT,1"-8, G8

18шт.

7

426-1664

BOLT,Hex, 1" - 8 x 4", Gr 8

18шт.

8

496-21106

WASHER,1 1/16" x 2" x .209", HDN

18шт.

9

87306910

CUTTING EDGE

Used Between Teeth

8шт.

10

L125966

PLOW BOLT,#3, Dome Hd, 1" - 8 x 3.50", Gr 8

16шт.

11

429-1016

NUT,1"-8, G8

16шт.

Выбрано товаров: 19
