(55.512.CL[03]) - JOYSTICK STEERING FRAME HARNESS ASSEMBLY

Запчасти Case 921F (55.512.CL[03]) - JOYSTICK STEERING FRAME HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS

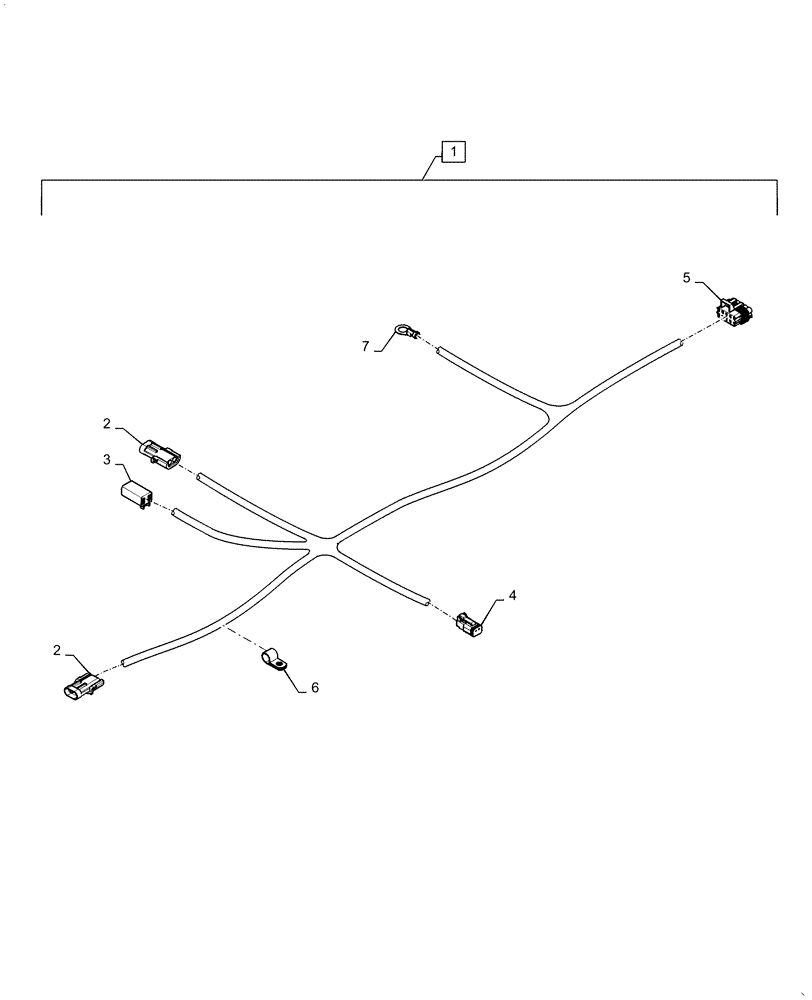

Схема запчастей Case 921F - (55.512.CL[03]) - JOYSTICK STEERING FRAME HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS
3
1
2
6
2
4
5
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87493786

WIRE HARNESS

Incl 2 - 7

1шт.

2

245483C1

ELEC CONNECTOR,Male, 2 Pin

2шт.

3

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

1шт.

4

225316C1

ELEC CONNECTOR,Female, 2 Pin

1шт.

5

256352A1

CONNECTOR, ELEC

10 Cavity

1шт.

6

515-21111

CLAMP

1шт.

7

1964706C1

TERMINAL CONNECTOR

1шт.
