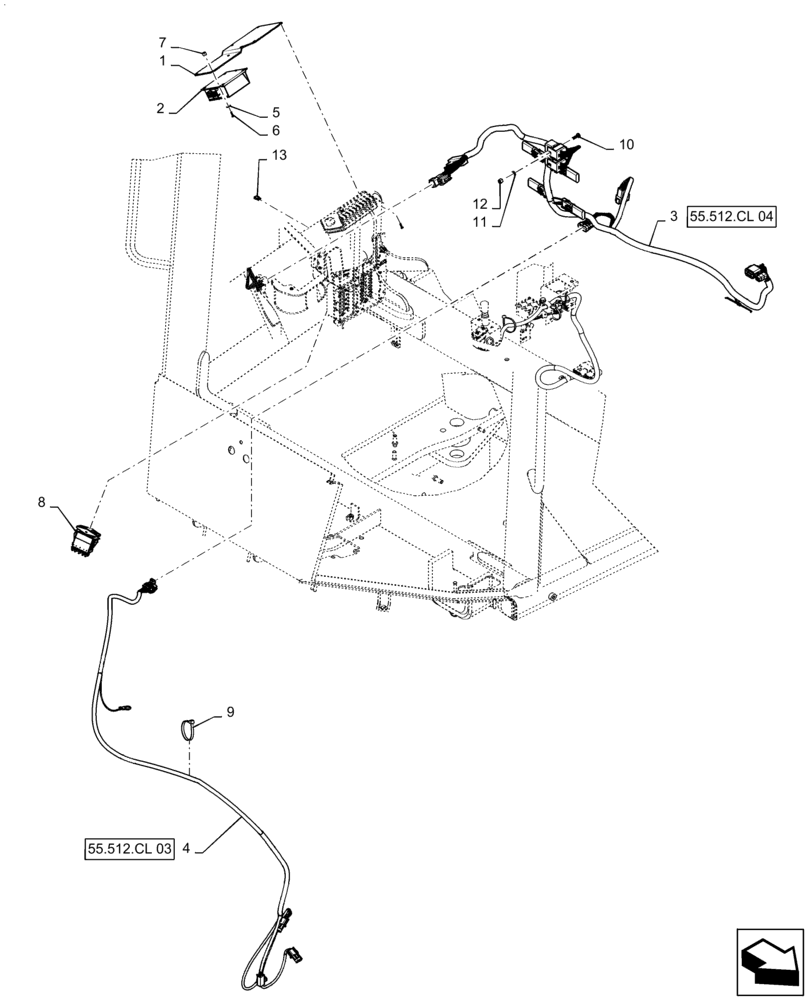

Запчасти Case 921F (55.512.CL[02]) - JOYSTICK STEERING HARNESS INSTALLATION (55) - ELECTRICAL SYSTEMS

1

84185169

BRACKET

Joystick Controller

1шт.

2

84466150

MODULE

Complete Assembly

1шт.

3

84152428

WIRE HARNESS

1шт.

4

87493786

WIRE HARNESS

Frame Harness

1шт.

5

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

3шт.

6

840-1414

SCREW,Pan, Cl 4.8

7шт.

7

832-10404

NUT,M4 x 0.7, Cl 8.8

3шт.

8

87486588

SWITCH

1шт.

9

L11541

CABLE TIE,203.2mm L, Nylon

4шт.

10

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

2шт.

11

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

12

832-10405

NUT,M5 x .8, Cl 8

2шт.

13

121412A1

FUSE,10A, Mini, Red

1шт.
