(55.511.AM) - HEATED REARVIEW MIRROR WIRE HARNESS

Запчасти Case 921F (55.511.AM) - HEATED REARVIEW MIRROR WIRE HARNESS (55) - ELECTRICAL SYSTEMS

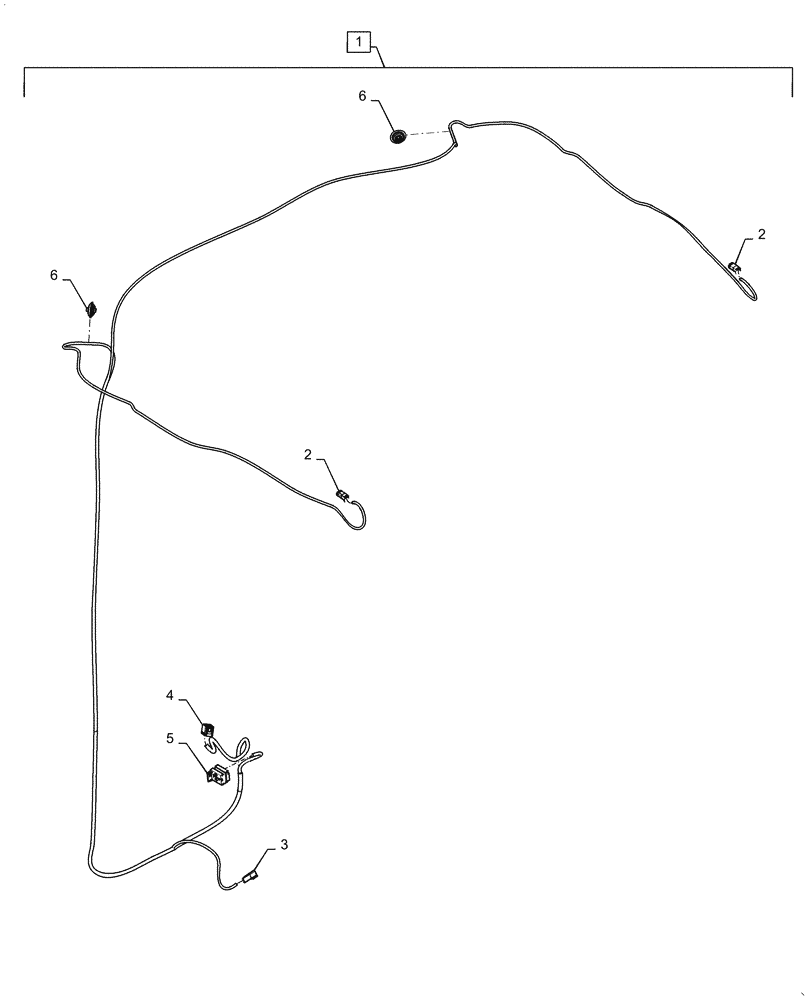

Схема запчастей Case 921F - (55.511.AM) - HEATED REARVIEW MIRROR WIRE HARNESS (55) - ELECTRICAL SYSTEMS
4
5
1
6
6
2
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84494902

WIRE HARNESS

Incl 2 - 6

1шт.

2

225316C1

ELEC CONNECTOR,Female, 2 Pin

2шт.

3

225294C1

ELEC CONNECTOR,Male, 3 Pin

1шт.

4

382391A1

MULTIPOLE CONNECTOR,Female, 10 Pin

1шт.

5

245731C1

CONNECTOR, ELEC

1шт.

6

87613497

GUARD

Grommet

2шт.
