Запчасти Case 921F (55.510.AF[02]) - CAB MAIN WIRE HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS

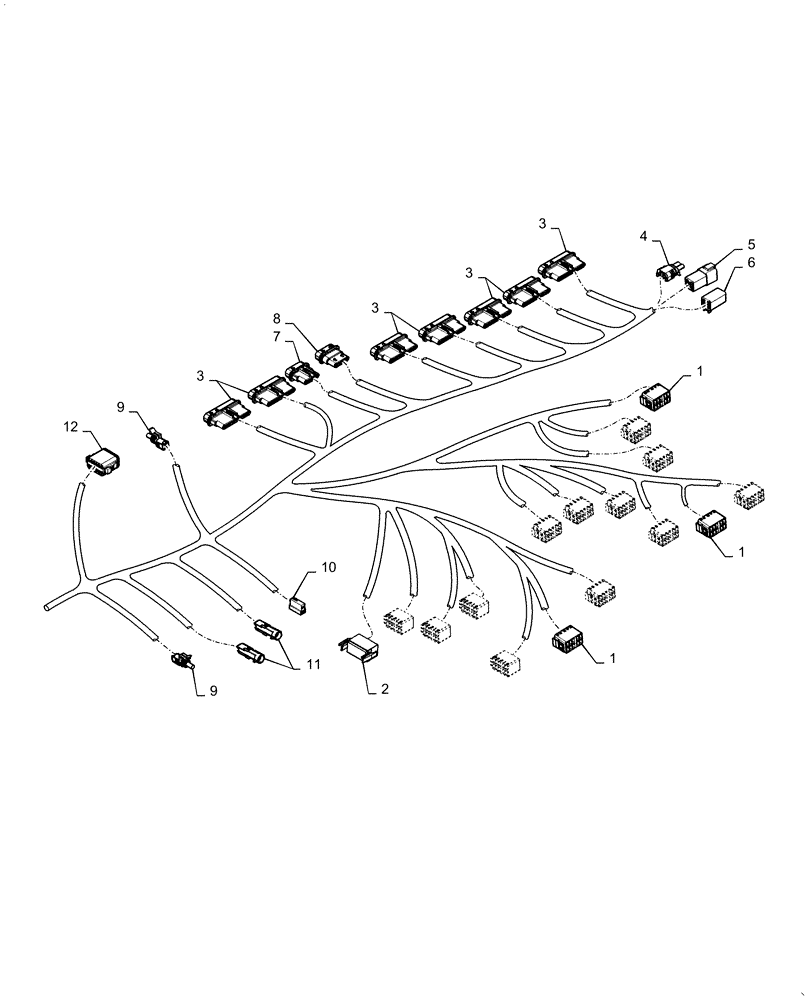

Схема запчастей Case 921F - (55.510.AF[02]) - CAB MAIN WIRE HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS
6
4
1
3
12
5
7
3
10
9
1
2
1
3
3
11
8
9

Артикул

Название

Примечание

Количество

1

382391A1

MULTIPOLE CONNECTOR,Female, 10 Pin

15шт.

2

87345132

ELEC CONNECTOR

12 Way Receptacle

1шт.

3

87324393

ELEC CONNECTOR

12 Way Splice

7шт.

4

245482C1

ELEC CONNECTOR,2 Pin

1шт.

5

225350C1

ELEC CONNECTOR,Male, 6 Pin

1шт.

6

225351C1

ELEC CONNECTOR,Female, 6 Pin

1шт.

7

87324391

TERMINAL CONNECTOR

6 Way Splice

1шт.

8

87324462

ELEC CONNECTOR

Electrical Splice 3 x 4 Way

1шт.

9

245480C1

ELEC CONNECTOR,1 Pin

3шт.

10

3227856R1

CONNECTION

2 Cavity Receptacle

1шт.

11

245481C1

CONNECTION,ELECTRIC

2шт.

12

225389C1

CONNECTOR, ELEC

12 Cavity

1шт.

Выбрано товаров: 12
