(55.510.AF[01]) - CAB MAIN WIRE HARNESS FUSE AND RELAYS

Запчасти Case 921F (55.510.AF[01]) - CAB MAIN WIRE HARNESS FUSE AND RELAYS (55) - ELECTRICAL SYSTEMS

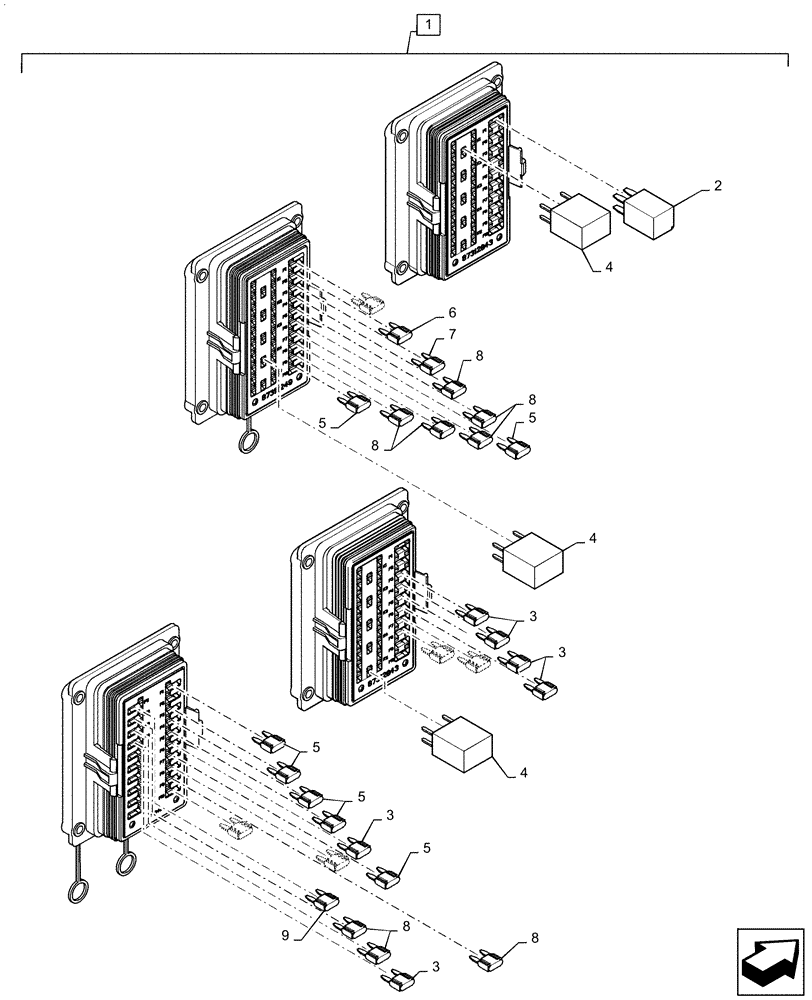

Схема запчастей Case 921F - (55.510.AF[01]) - CAB MAIN WIRE HARNESS FUSE AND RELAYS (55) - ELECTRICAL SYSTEMS
8
8
4
3
8
8
4
7
1
5
9
3
3
5
5
6
2
3
4
5
8
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47405040

WIRE HARNESS

Main Cab, Incl 2 - 9

1шт.

2

87318986

RELAY,4 Pin, 24V

Ultra Micro, 4-Pin

1шт.

3

121410A1

FUSE,5A, Mini, Tan

10шт.

4

87312626

RELAY,24V

5 - Pin

11шт.

5

121411A1

FUSE,7.5A, Mini, Brown

7шт.

6

121414A1

FUSE,20A, Mini, Yellow

2шт.

7

121413A1

FUSE,15A, Mini, Blue

1шт.

8

121412A1

FUSE,10A, Mini, Red

6шт.

9

121415A1

FUSE,25A, Mini, Clear

1шт.

10

84379839

FOAM

Not Illustrated, To be Used Inside Cover to Secure Item 3, Start Serial: NGF235421

3шт.
