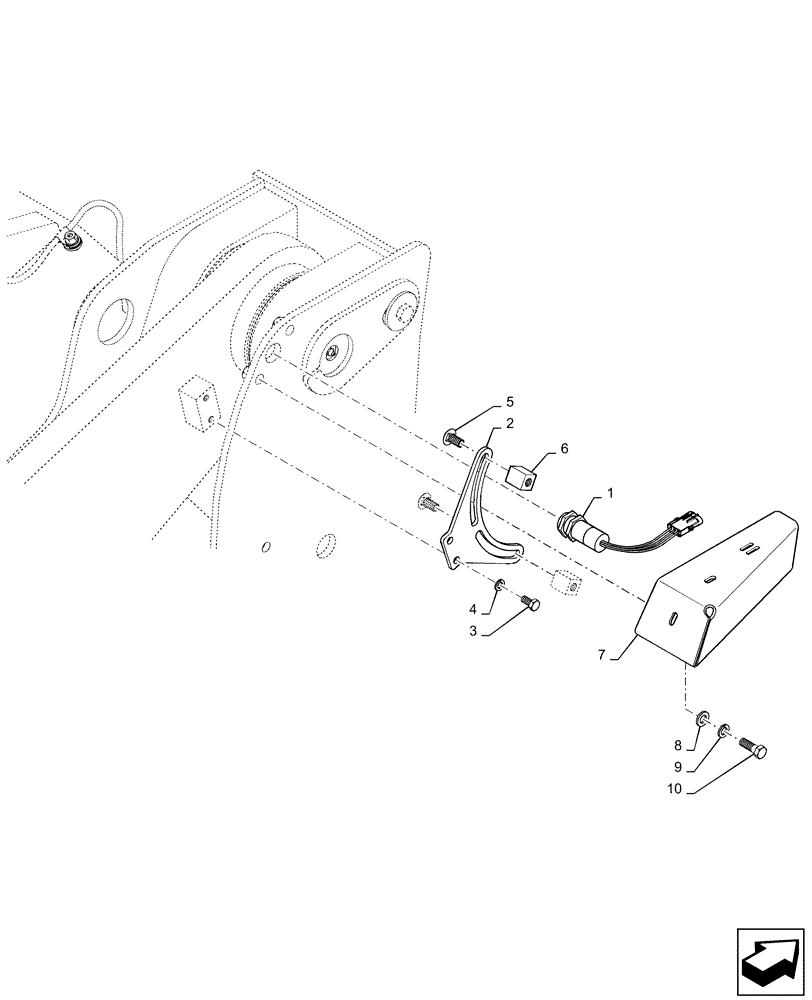

Запчасти Case 921F (55.408.CL[04]) - RETURN TO TRAVEL CONTROL (XR / LR) (55) - ELECTRICAL SYSTEMS

1

1546498C1

SWITCH

Proximity

1шт.

2

87345327

PLATE

Target Mount

1шт.

3

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

4

892-11010

LOCK WASHER,M10

2шт.

5

811-12025

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 25mm, Cl 8.8

2шт.

6

87437102

BLOCK

2шт.

7

87430084

COVER

Proximity Switch

1шт.

8

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

9

892-11012

LOCK WASHER,M12

2шт.

10

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.
