Запчасти Case 921F (55.408.CL[02]) - RETURN TO TRAVEL CONTROL (Z-BAR) (55) - ELECTRICAL SYSTEMS

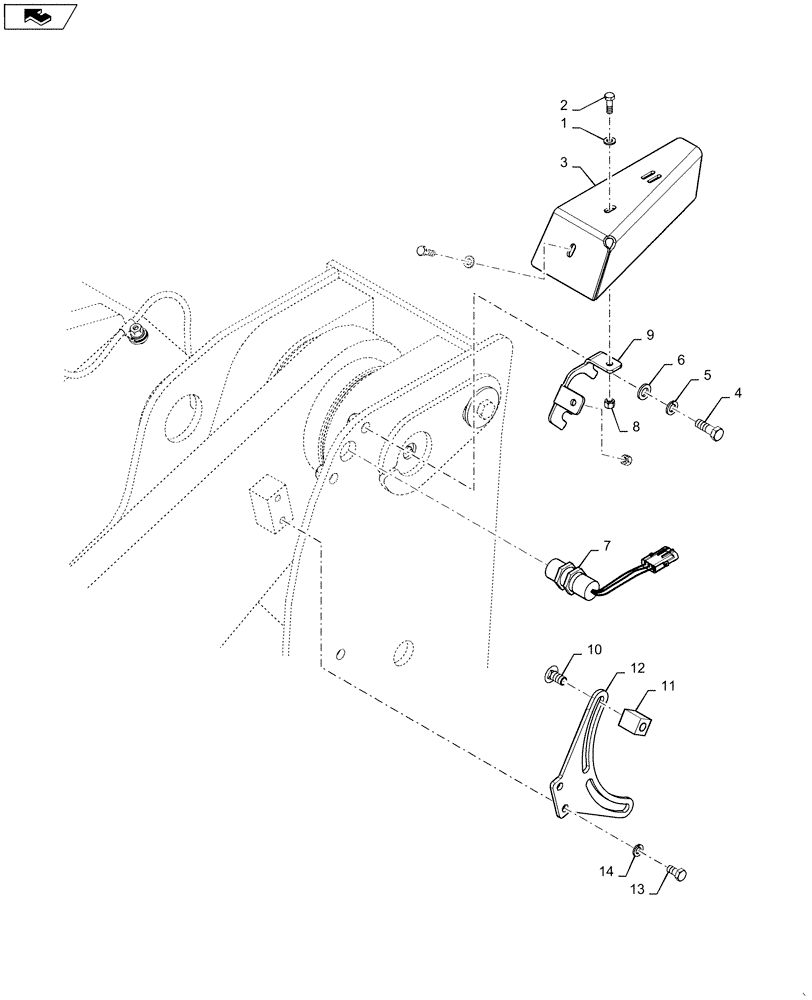

Схема запчастей Case 921F - (55.408.CL[02]) - RETURN TO TRAVEL CONTROL (Z-BAR) (55) - ELECTRICAL SYSTEMS
12
5
11
7
14
1
9
home
13
4
3
8
10
2
6

Артикул

Название

Примечание

Количество

1

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

2шт.

2

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

3

47411064

COVER

Proximity Switch

1шт.

4

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

5

892-11012

LOCK WASHER,M12

2шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

7

1546498C1

SWITCH

Proximity, Normally Closed

1шт.

8

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

9

47411062

MOUNTING PLATE

1шт.

10

811-12025

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 25mm, Cl 8.8

2шт.

11

87437102

BLOCK

Proximity Switch

2шт.

12

87345327

PLATE

Target Mount

1шт.

13

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

14

892-11010

LOCK WASHER,M10

2шт.

Выбрано товаров: 14
