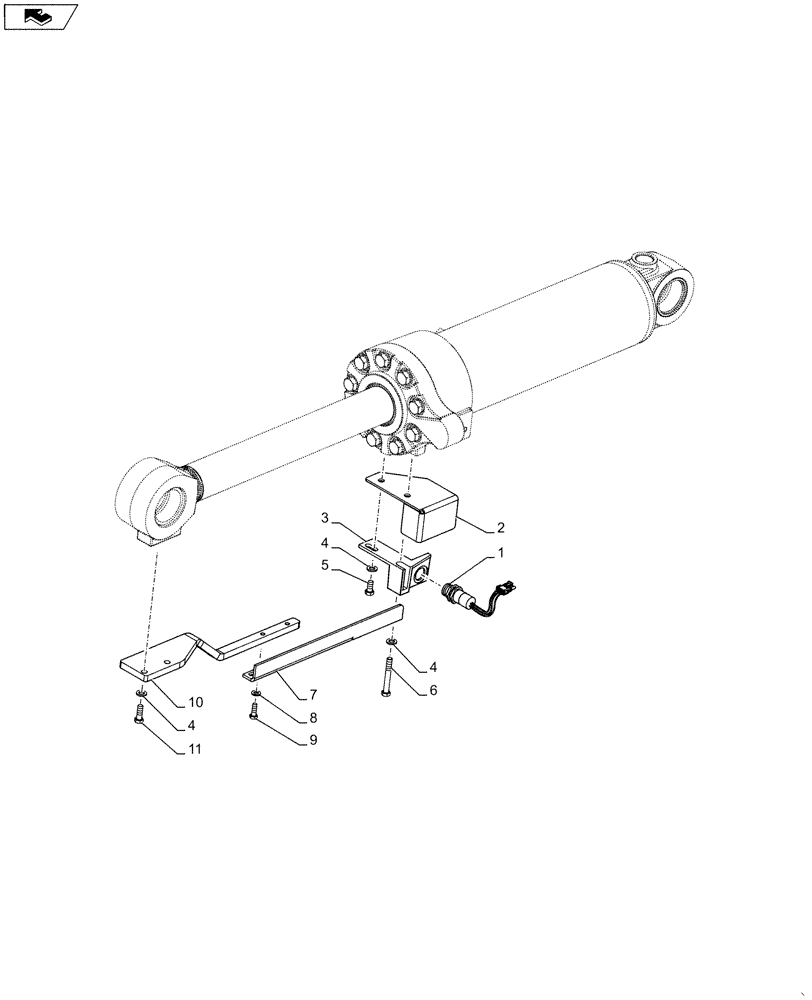

Запчасти Case 921F (55.408.CL[01]) - RETURN TO DIG CONTROL (Z-BAR) (55) - ELECTRICAL SYSTEMS

1

1546497C1

SWITCH

Proximity

1шт.

2

87403966

COVER

Proximity Switch

1шт.

3

L125983

SUPPORT

Bracket

1шт.

4

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

5

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

6

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

1шт.

7

443541A1

BRACKET

Return To Dig Target

1шт.

8

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

9

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

10

87345100

BRACKET

Return To Dig, 821F

1шт.

10

84269583

BRACKET

Return To Dig, 921F

1шт.

11

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.
