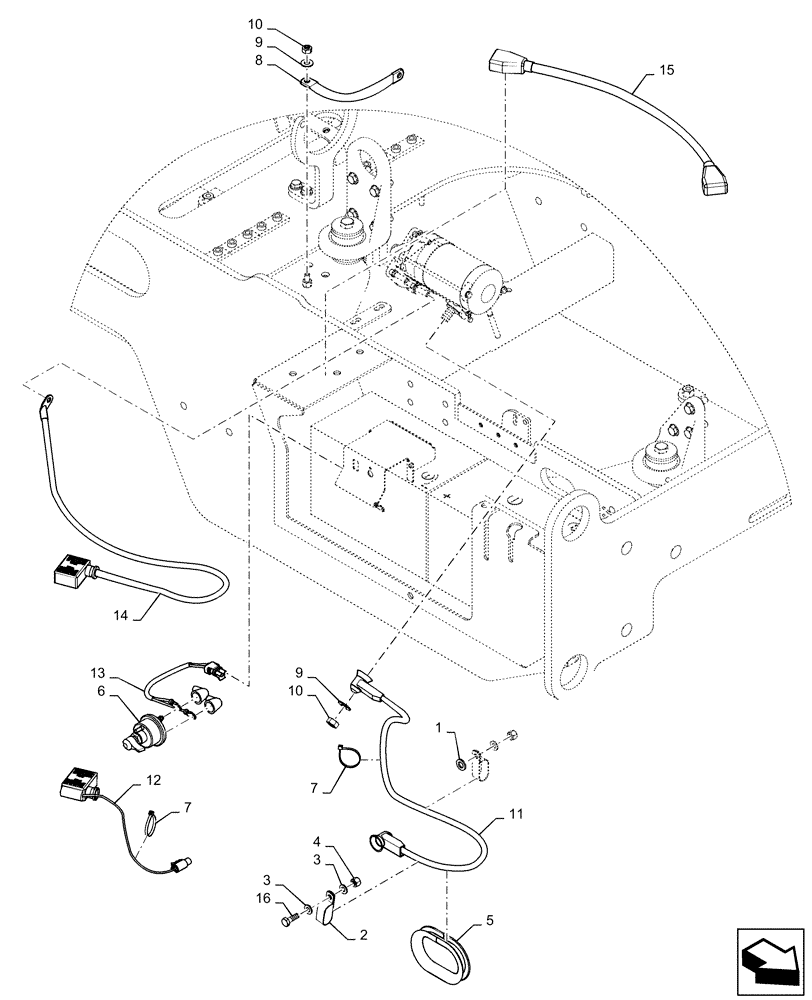

Запчасти Case 921F (55.302.AV) - BATTERY CABLE INSTALLATION (55) - ELECTRICAL SYSTEMS

1

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

2

R54363

CLAMP

Double

2шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

4

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

5

47600216

CONDUIT

Battery Cables

1шт.

6

L126256

SWITCH

Master Disconnect

1шт.

7

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

8

84269958

GROUND STRAP

1шт.

9

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

3шт.

10

253347A1

NUT,Hex, M10 x 1.5

3шт.

11

84488501

GROUND CABLE,1070mm L

Battery Disconnect to Positve Starter

1шт.

12

84488506

GROUND CABLE

Battery Positive to Disconnect

1шт.

13

L127676

WIRE HARNESS

Disconnect

1шт.

14

84488508

GROUND CABLE

Battery Negative to Starter

1шт.

15

84597599

CABLE,635mm L

Battery Crossover

1шт.

16

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.
